Universalmodtager 536U

Universalmodtager 536U; Herofon / Herophon (ID = 1834108) Radio Universalmodtager 536U; Herofon / Herophon (ID = 1834101) Radio
Universalmodtager 536U; Herofon / Herophon (ID = 1834102) Radio Universalmodtager 536U; Herofon / Herophon (ID = 1834103) Radio
Universalmodtager 536U; Herofon / Herophon (ID = 1834105) Radio Universalmodtager 536U; Herofon / Herophon (ID = 1834106) Radio
Universalmodtager 536U; Herofon / Herophon (ID = 1834111) Radio
Use red slider bar for more.
Universalmodtager 536U; Herofon / Herophon (ID = 1834108) Radio

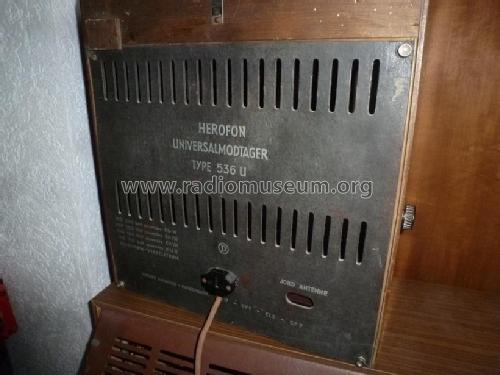

Herofon / Herophon: Universalmodtager 536U [Radio] ID = 1834108 615x820
Select picture or schematic to display from thumbnails on the right and click for download.
For model Universalmodtager 536U, Herofon / Herophon (brand of Hede Nielsen):
Eigene Ebay-Auktion. Gerät im Fundzustand.

Country:  Denmark
Manufacturer / Brand:  Herofon / Herophon (brand of Hede Nielsen)
alternative name

Hede Nielsen's Fabrikker A/S
Year: 1938 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 3: CF7 CL2 CY1 EUX or EUVII or EUVIII or EUVI
schematic requested
Main principle TRF with regeneration
Tuned circuits 1 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage AC/DC-set / 110; 127; 150; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Universalmodtager 536U - Herofon / Herophon brand of
Material Wooden case
Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).
Dimensions (WHD) 400 x 425 x 250 inch / 10160 x 10795 x 6350 mm
Notes

Urdox-FeH Resistor Selection:

  • EUX for 110 V
  • EUVII for 127 V
  • EUVIII for 150 V
  • EUVI for 220 V operation.

Model page created by Michael John. See "Data change" for further contributors.



All listed radios etc. from Herofon / Herophon (brand of Hede Nielsen)
Here you find 49 models, 41 with images and 21 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
