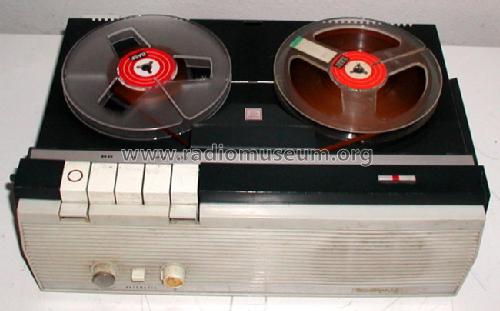

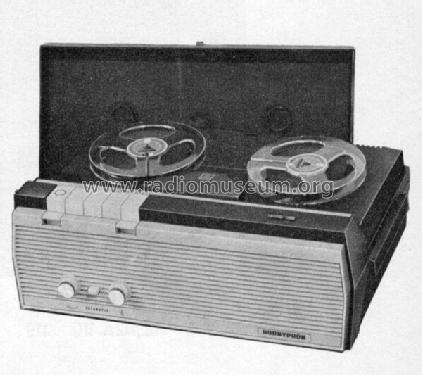

Diola Automatic WM5106T

Horny (Hornyphon); Wien

  • Year
  • 1965
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 79990
    • Brand: Hornyphon

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 4
  • Number of Transistors
  • 1
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • Tape Recorder
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 127; 220; 240 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
  • Power out
  • 2 W (unknown quality)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Diola Automatic WM5106T - Horny Hornyphon; Wien
  • Shape
  • Tablemodel, Box - most often with Lid (NOT slant panel).
  • Dimensions (WHD)
  • 360 x 255 x 125 mm / 14.2 x 10 x 4.9 inch
  • Notes
  • Tonbandgerät Diola Automatic, 2-Spur, Bandgeschwindigkeit 9,5 cm/sec.

    Spulendurchmesser bis 150 mm.
    Paralleltype zu Philips EL3552A (aber ohne Automatic-Wippe).

    Mögliches Zuehör:
    EV 7013/33
       Dyn. Handmikrophon, Kugelcharakteristik, niederohmig
    EV 7011/33   Dyn. Mikrophon, Nierencharakteristik, niederohmig, Stützfuß.
    EL 3769/00   Dia-Steuergerät
    EL 3969/11A Telefonadapter
    EL5096/00    Reinigungsband

  • Net weight (2.2 lb = 1 kg)
  • 6 kg / 13 lb 3.5 oz (13.216 lb)
  • Source of data
  • -- Original-techn. papers. / Radiokatalog Band 2, Ernst Erb
  • Mentioned in
  • - - Manufacturers Literature (Bedienungsanleitung)
  • Literature/Schematics (1)
  • -- Original-techn. papers.
  • Author
  • Model page created by Wolfgang Bauer. See "Data change" for further contributors.
