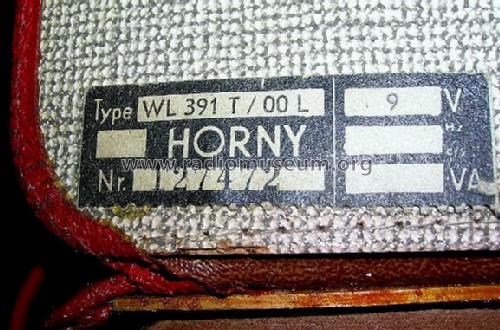

Lisette WL391T /00L /00X

• Country
• Austria

• Manufacturer / Brand
• Horny (Hornyphon); Wien

• Year
• 1961/1962

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 73387

• • Brand: Hornyphon

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 7

• Semiconductors
• OC44 OC45 OC45 OC71 OC71 OC72 OC72 OA85 OA79

• Main principle
• Superheterodyne (common); ZF/IF 460 kHz; 4 AF stage(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Dry Batteries / 2x4,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org
• Model: Lisette WL391T [/00L /00X] - Horny Hornyphon; Wien

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 240 x 160 x 80 mm / 9.4 x 6.3 x 3.1 inch

• Notes

• Gegenüber dem Vorjahresmodell geändertes Gehäusedesign. Lieferbar in 2 Gehäusefarben.

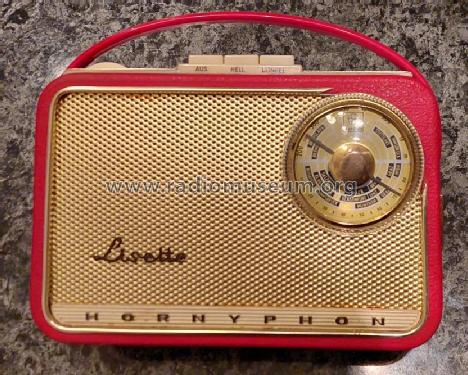

  Lisette, WL391T/00 L,  Gehäusefarbe Rot

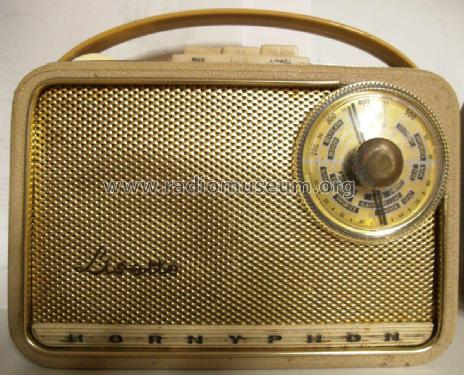

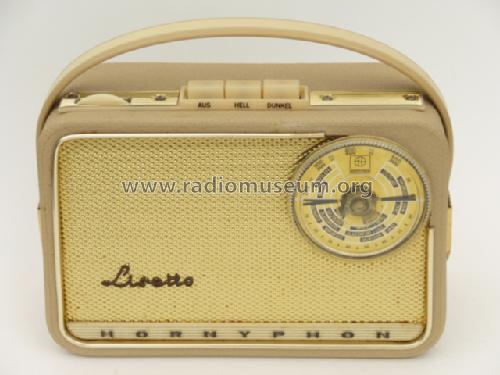

  Lisette, WL391T/00 X,  Gehäusefarbe Beige
  Technisch ident mit dem Parallelgerät Philips Party L3A12T/00.
  Das letzte HORNYPHON-Gerät dieser Modellreihe.

  Weiterführende Informationen zu diesem Modell sowie der ganzen Modellreihe in diesem Forumsbeitrag.

• Net weight (2.2 lb = 1 kg)
• 1.4 kg / 3 lb 1.3 oz (3.084 lb)

• Price in first year of sale
• 999.00 öS

• Source of data
• -- Original prospect or advert / Radiokatalog Band 2, Ernst Erb

• Mentioned in
• -- Original-techn. papers.

• Author
• Model page created by Wolfgang Bauer. See "Data change" for further contributors.
