Panorama 43 WT1726A /00 Ch= S5a

Panorama 43 WT1726A /00 Ch= S5a; Horny Hornyphon; (ID = 134923) Television

Panorama 43 WT1726A /00 Ch= S5a; Horny Hornyphon; (ID = 134924) Television

Panorama 43 WT1726A /00 Ch= S5a; Horny Hornyphon; (ID = 1014165) Television

Panorama 43 WT1726A /00 Ch= S5a; Horny Hornyphon; (ID = 503493) Television

Panorama 43 WT1726A /00 Ch= S5a; Horny Hornyphon; (ID = 2537854) Television
Panorama 43 WT1726A /00 Ch= S5a; Horny Hornyphon; (ID = 134922) Television
Use red slider bar for more.
Panorama 43 WT1726A /00 Ch= S5a; Horny Hornyphon; (ID = 134922) Television
Horny Hornyphon;: Panorama 43 WT1726A /00 Ch= S5a [Television] ID = 134922 663x600
Select picture or schematic to display from thumbnails on the right and click for download.
For model Panorama 43 WT1726A /00 Ch= S5a, Horny (Hornyphon); Wien

Country:  Austria
Manufacturer / Brand:  Horny (Hornyphon); Wien
Brand

Hornyphon
Year: 1960 Category: Television Receiver (TV) or Monitor
Valves / Tubes 21: PCC88 PCF80 EF85 EF184 EF184 PCL84 PCF80 EF80 PL84 PCL82 PCF80 ECH83 PCF80 PF86 PCL82 PCF80 ECC82 PL36 PY88 DY87 AW43-88
Main principle Superheterodyne (common)
Wave bands Wave Bands given in the notes.
Details
Power type and voltage AC/DC-set / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Panorama 43 WT1726A /00 Ch= S5a - Horny Hornyphon; Wien
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 490 x 420 x 420 mm / 19.3 x 16.5 x 16.5 inch
Notes

Empfangsbereich VHF Band I + III, Kanal 2a - 4, 5 - 12. Für UHF vorbereitet.
Parallelgerät zum Philips Regent 43 17TA260A/00.
Für Kabel-Fernbedienung AT6320/02.

Price in first year of sale 5'000.00 ATS
Source of data Radiokatalog Band 2, Ernst Erb

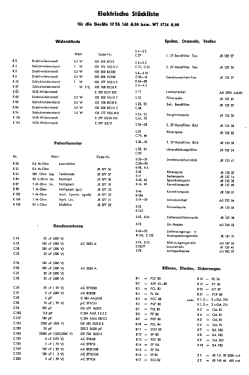

Literature/Schematics (1) -- Original-techn. papers.

Model page created by Wolfgang Bauer. See "Data change" for further contributors.
