Rex 47 W W556A II

Rex 47 W W556A II; Horny Hornyphon; (ID = 772827) Radio

Rex 47 W W556A II; Horny Hornyphon; (ID = 18419) Radio
Rex 47 W W556A II; Horny Hornyphon; (ID = 73469) Radio Rex 47 W W556A II; Horny Hornyphon; (ID = 613576) Radio
Rex 47 W W556A II; Horny Hornyphon; (ID = 1681) Radio Rex 47 W W556A II; Horny Hornyphon; (ID = 613575) Radio
Rex 47 W W556A II; Horny Hornyphon; (ID = 613577) Radio Rex 47 W W556A II; Horny Hornyphon; (ID = 792076) Radio

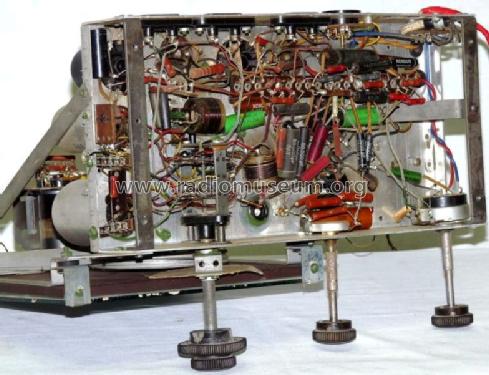

Rex 47 W W556A II; Horny Hornyphon; (ID = 792077) Radio Rex 47 W W556A II; Horny Hornyphon; (ID = 792078) Radio
Rex 47 W W556A II; Horny Hornyphon; (ID = 792079) Radio Rex 47 W W556A II; Horny Hornyphon; (ID = 792080) Radio
Use red slider bar for more.
Rex 47 W W556A II; Horny Hornyphon; (ID = 73469) Radio

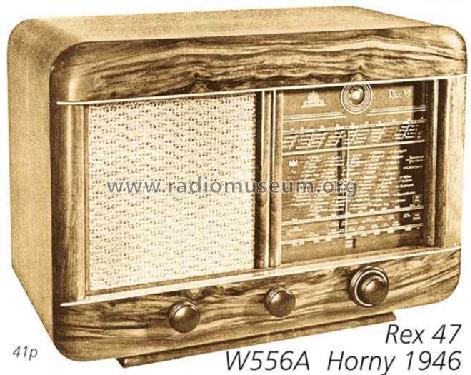

Horny Hornyphon;: Rex 47 W W556A II [Radio] ID = 73469 600x442
Select picture or schematic to display from thumbnails on the right and click for download.
For model Rex 47 W W556A II, Horny (Hornyphon); Wien:
Hornyphon Rex 47

Country:  Austria
Manufacturer / Brand:  Horny (Hornyphon); Wien
Brand

Hornyphon
Year: 1946/1947 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: ECH11 EBF11 EL11 AZ11 EFM11
Main principle Superheterodyne (common); ZF/IF 452 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 150; 220; 240 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 22 cm = 8.7 inch
Power out 4 W (unknown quality)
from Radiomuseum.org Model: Rex 47 W W556A II - Horny Hornyphon; Wien
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 500 x 365 x 230 mm / 19.7 x 14.4 x 9.1 inch
Notes Wellenbereiche: KW 13,7...52m; MW 192...590; LW 730...2000m. Anschlüsse für Plattenspieler und Aussenlautsprecher. Variable Bandbreite.
Net weight (2.2 lb = 1 kg) 12.8 kg / 28 lb 3.1 oz (28.194 lb)
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb
Circuit diagram reference Unterlagen E.Erb
Literature/Schematics (1) -- Original-techn. papers.
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.
