Rigoletto W350A

Rigoletto W350A; Horny Hornyphon; (ID = 9863) Radio

Rigoletto W350A; Horny Hornyphon; (ID = 18420) Radio

Rigoletto W350A; Horny Hornyphon; (ID = 684564) Radio

Rigoletto W350A; Horny Hornyphon; (ID = 684565) Radio
Rigoletto W350A; Horny Hornyphon; (ID = 261902) Radio Rigoletto W350A; Horny Hornyphon; (ID = 261904) Radio
Rigoletto W350A; Horny Hornyphon; (ID = 261903) Radio Rigoletto W350A; Horny Hornyphon; (ID = 261905) Radio
Rigoletto W350A; Horny Hornyphon; (ID = 261906) Radio Rigoletto W350A; Horny Hornyphon; (ID = 1686) Radio
Rigoletto W350A; Horny Hornyphon; (ID = 66020) Radio Rigoletto W350A; Horny Hornyphon; (ID = 261901) Radio
Rigoletto W350A; Horny Hornyphon; (ID = 278037) Radio Rigoletto W350A; Horny Hornyphon; (ID = 278042) Radio
Use red slider bar for more.
Rigoletto W350A; Horny Hornyphon; (ID = 261902) Radio
Horny Hornyphon;: Rigoletto W350A [Radio] ID = 261902 786x600
Select picture or schematic to display from thumbnails on the right and click for download.
For model Rigoletto W350A, Horny (Hornyphon); Wien

Country:  Austria
Manufacturer / Brand:  Horny (Hornyphon); Wien
Brand

Hornyphon
Year: 1949/1950 Category: Broadcast Receiver - or past WW2 Tuner

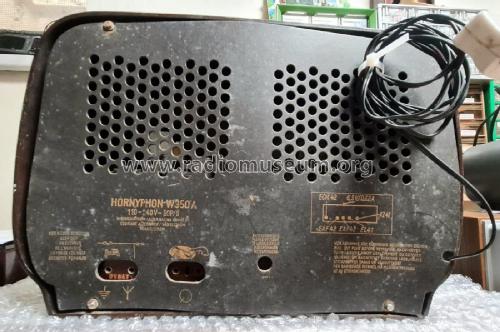

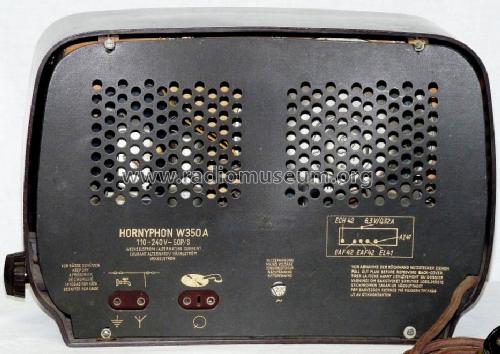

Valves / Tubes 5: ECH42 EAF42 EAF42 EL41 AZ41
Main principle Super-Heterodyne (Super in general); ZF/IF 452 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 150; 200; 220; 240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 17 cm = 6.7 inch
Power out 4 W (unknown quality)
from Radiomuseum.org Model: Rigoletto W350A - Horny Hornyphon; Wien
Material Bakelite case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 365 x 250 x 205 mm / 14.4 x 9.8 x 8.1 inch
Notes Parallelgerät zu Philips Rhapsodie BA393A.
Net weight (2.2 lb = 1 kg) 5.5 kg / 12 lb 1.8 oz (12.115 lb)
Price in first year of sale 980.00 ATS
Collectors' prices
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb
Circuit diagram reference Die «Thali Schemasammlung» führt das Modell.
Literature/Schematics (1) -- Original-techn. papers.
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.


All listed radios etc. from Horny (Hornyphon); Wien
Here you find 865 models, 772 with images and 578 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
Horny Hornyphon;: Rigoletto W350A
Threads: 1 | Posts: 1
Hits: 1364     Replies: 0
Hornyphon Rigoletto W350A Reparaturhinweis
Gerhard Bischof
09.Dec.12
  1

Reparaturhinweis

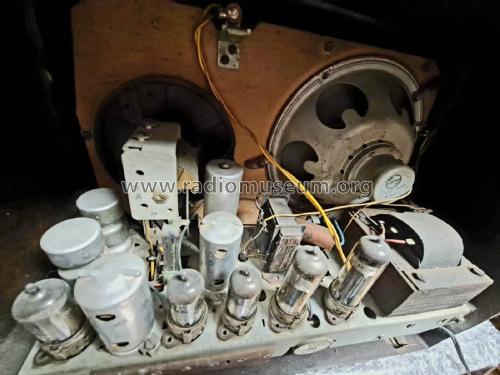

Nach dem Erneuern aller relevanten C´s un R´s wurden am funktionierenden Gerät folgende Spannungen gemessen:

Rö4 (EL41) Va = + 240V   Vg1 = - 7V

Rö3 (EAF42)     Va = + 45V        Vg1 =  - 6V (gemessen am "Erzeuger" W21)

Rö2 (EAF42)   Va = + 240V

Da die Anodenspannung an Rö3 anfangs ungewöhnlich erschien, habe ich den Anodenstrom gemessen und erhielt als Meßergebnis 1.6 mA. Dies liegt durchaus innerhalb der zulässigen Betriebswerte.

Gerhard Bischof
