For model Souverän W617A /00 /70, Horny (Hornyphon); Wien:
Sammlung A. Fröhlich

Country:  Austria
Manufacturer / Brand:  Horny (Hornyphon); Wien
Brand

Hornyphon
Year: 1961/1962 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 8: ECC85 ECH81 EF183 EABC80 EM84 ECL86 EL84 EZ81
Main principle Super-Heterodyne (Super in general); ZF/IF 460/10700 kHz
Tuned circuits 6 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 127; 150; 220; 240 Volt
Loudspeaker 2 Loudspeakers
Power out
from Radiomuseum.org Model: Souverän W617A /00 /70 - Horny Hornyphon; Wien
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 604 x 312 x 250 mm / 23.8 x 12.3 x 9.8 inch
Notes

2 Ausführungen:
  /00 = dunkel-hochglanz.
  /70 = hell-matt
NF-Stereo

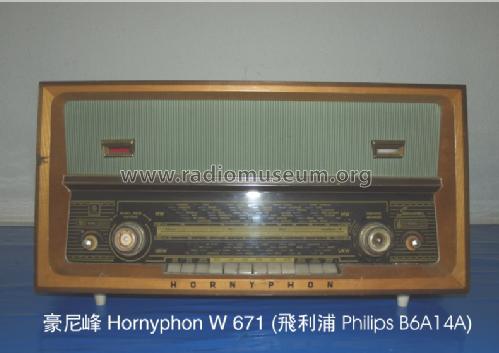

Parallelgerät zur Philips Premiere B6A14A.

Net weight (2.2 lb = 1 kg) 10.5 kg / 23 lb 2 oz (23.128 lb)
Price in first year of sale 3'270.00 öS
Collectors' prices
External source of data A. Fröhlich
Source of data -- Original prospect or advert / Radiokatalog Band 2, Ernst Erb
Mentioned in -- Original-techn. papers.

Model page created by Ernst Erb. See "Data change" for further contributors.
