Souverän W672A /00 /70

Souverän W672A /00 /70; Horny Hornyphon; (ID = 932087) Radio

Souverän W672A /00 /70; Horny Hornyphon; (ID = 932088) Radio

Souverän W672A /00 /70; Horny Hornyphon; (ID = 932089) Radio

Souverän W672A /00 /70; Horny Hornyphon; (ID = 932104) Radio

Souverän W672A /00 /70; Horny Hornyphon; (ID = 70270) Radio

Souverän W672A /00 /70; Horny Hornyphon; (ID = 70269) Radio
Souverän W672A /00 /70; Horny Hornyphon; (ID = 1753566) Radio Souverän W672A /00 /70; Horny Hornyphon; (ID = 70267) Radio
Souverän W672A /00 /70; Horny Hornyphon; (ID = 1753553) Radio Souverän W672A /00 /70; Horny Hornyphon; (ID = 1753554) Radio
Souverän W672A /00 /70; Horny Hornyphon; (ID = 1753555) Radio Souverän W672A /00 /70; Horny Hornyphon; (ID = 1753556) Radio
Souverän W672A /00 /70; Horny Hornyphon; (ID = 1753557) Radio Souverän W672A /00 /70; Horny Hornyphon; (ID = 1753558) Radio
Souverän W672A /00 /70; Horny Hornyphon; (ID = 1753560) Radio Souverän W672A /00 /70; Horny Hornyphon; (ID = 1753561) Radio
Use red slider bar for more.
Souverän W672A /00 /70; Horny Hornyphon; (ID = 1753566) Radio

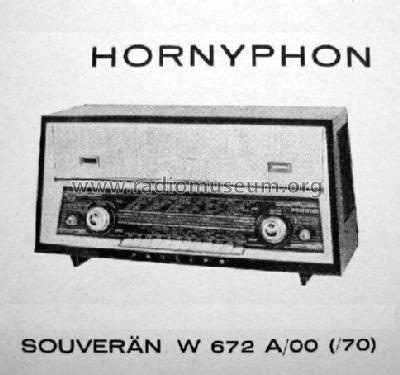

Horny Hornyphon;: Souverän W672A /00 /70 [Radio] ID = 1753566 1400x797
Select picture or schematic to display from thumbnails on the right and click for download.
For model Souverän W672A /00 /70, Horny (Hornyphon); Wien

Country:  Austria
Manufacturer / Brand:  Horny (Hornyphon); Wien
Brand

Hornyphon
Year: 1962/1963 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 8: ECC85 ECH81 EF183 EABC80 EM84 EL84 ECL86 EZ81
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Tuned circuits 7 AM circuit(s)     9 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 127; 150; 220; 240 Volt
Loudspeaker 2 Loudspeakers / Ø 16 cm = 6.3 inch
Power out 5 W (unknown quality)
from Radiomuseum.org Model: Souverän W672A /00 /70 - Horny Hornyphon; Wien
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 604 x 312 x 250 mm / 23.8 x 12.3 x 9.8 inch
Notes

2 Ausführungen:
  /00 = dunkel-hochglanz.
  /70 = hell-matt
NF-Stereo
Parallelgerät zur Philips Premiere B6A24A.

Net weight (2.2 lb = 1 kg) 11 kg / 24 lb 3.7 oz (24.229 lb)
Price in first year of sale 2'970.00 ATS
Source of data -- Original prospect or advert / Radiokatalog Band 2, Ernst Erb
Mentioned in -- Original-techn. papers.

Model page created by Wolfgang Bauer. See "Data change" for further contributors.



All listed radios etc. from Horny (Hornyphon); Wien
Here you find 867 models, 774 with images and 584 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
