• Country
• Austria

• Manufacturer / Brand
• Horny (Hornyphon); Wien

• Year
• 1963 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 118365

• • Brand: Hornyphon

• Number of Tubes
• 7

• Valves / Tubes
• ECC85 ECH81 EF89 EABC80 EM84 EL84 EZ80

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Record Player (not changer)

• Power type and voltage
• Alternating Current supply (AC) / 127; 150; 220; 240 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org

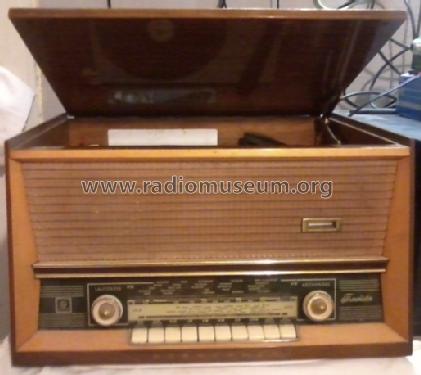

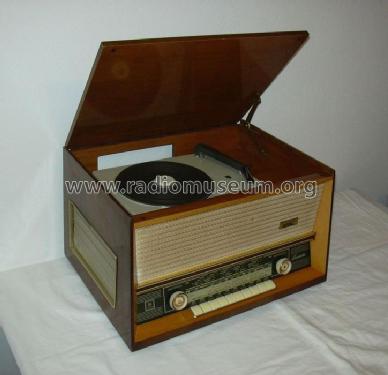

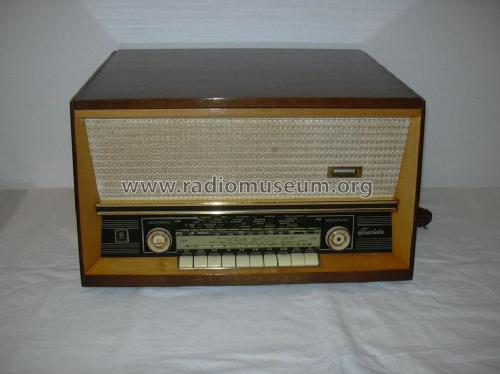

• Model: Traviata WH363A/00 - Horny Hornyphon; Wien

• Shape
• Tablemodel, Box - most often with Lid (NOT slant panel).

• Dimensions (WHD)
• 480 x 285 x 335 mm / 18.9 x 11.2 x 13.2 inch

• Notes

• Phono-Chassis = Philips SC10 AG2056.

• Net weight (2.2 lb = 1 kg)
• 10.6 kg / 23 lb 5.6 oz (23.348 lb)

• Source of data
• - - Data from my own collection

• Author
• Model page created by Josef Pils. See "Data change" for further contributors.
