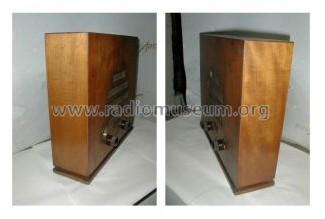

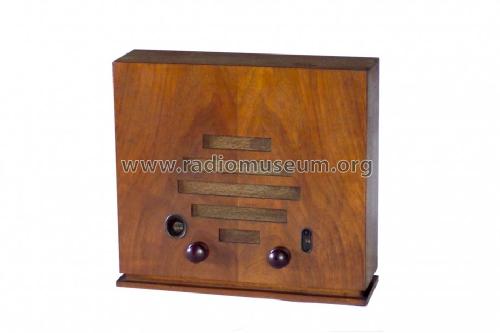

Huth, Signalbau AG,: E0102W [Radio] ID = 419425 693x700
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
|
alternative name
|
Ges. für Funkentelegraphie mbH | ||||
|---|---|---|---|---|---|
Brand |
Signalbau Huth | ||||
| Year: 1930–1932 | Category: Broadcast Receiver - or past WW2 Tuner | ||||
| Valves / Tubes | 3: RENS1204 RE134 RGN354 |
| Main principle | TRF with regeneration; 1 AF stage(s) |
|---|---|
| Tuned circuits | 1 AM circuit(s) |
| Wave bands | Broadcast (MW) and Long Wave. |
| Details | |
| Power type and voltage | Alternating Current supply (AC) / 110; 220 Volt |
| Loudspeaker | Magnetic loudspeaker (reed) of high quality (4 magnet poles). |
| Power out | |
| from Radiomuseum.org | Model: E0102W - Huth, Signalbau AG, Dr. Erich |
| Material | Wooden case |
| Shape | Tablemodel, high profile (upright - NOT Cathedral nor decorative). |
| Dimensions (WHD) | 350 x 360 x 160 mm / 13.8 x 14.2 x 6.3 inch |
| Net weight (2.2 lb = 1 kg) | 5 kg / 11 lb 0.2 oz (11.013 lb) |
| Price in first year of sale | 99.00 RM ! |
| External source of data | E. Erb 3-907007-36-0 |
| Source of data | Katalog Radio-Zentrale Prohaska 1931/32 / Radiokatalog Band 2, Ernst Erb |
| Circuit diagram reference | Röhren in FS-Bestückungstabellen |
| Picture reference | Das Modell ist im «Radiokatalog» (Erb) abgebildet. |
All listed radios etc. from Huth, Signalbau AG, Dr. Erich F. Huth (Signalbau Huth); Berlin später auch Hannover
