E 93 WH Holz

E 93 WH; Huth, Signalbau AG, (ID = 322703) Radio

E 93 WH; Huth, Signalbau AG, (ID = 4665) Radio
E 93 WH; Huth, Signalbau AG, (ID = 322709) Radio E 93 WH; Huth, Signalbau AG, (ID = 322710) Radio
E 93 WH; Huth, Signalbau AG, (ID = 322708) Radio E 93 WH; Huth, Signalbau AG, (ID = 4234) Radio
E 93 WH; Huth, Signalbau AG, (ID = 322711) Radio E 93 WH; Huth, Signalbau AG, (ID = 322712) Radio
E 93 WH; Huth, Signalbau AG, (ID = 322713) Radio E 93 WH; Huth, Signalbau AG, (ID = 1398346) Radio

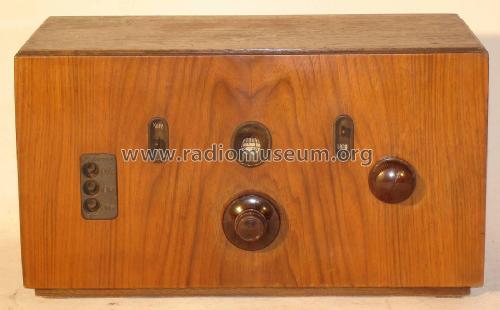

E 93 WH; Huth, Signalbau AG, (ID = 2284636) Radio E 93 WH; Huth, Signalbau AG, (ID = 2284637) Radio
Use red slider bar for more.
E 93 WH; Huth, Signalbau AG, (ID = 322709) Radio
Huth, Signalbau AG,: E 93 WH [Radio] ID = 322709 674x357
Select picture or schematic to display from thumbnails on the right and click for download.
For model E 93 WH Holz, Huth, Signalbau AG, Dr. Erich F. Huth (Signalbau Huth); Berlin später auch Hannover

Country:  Germany
Manufacturer / Brand:  Huth, Signalbau AG, Dr. Erich F. Huth (Signalbau Huth); Berlin später auch Hannover
alternative name

Ges. für Funkentelegraphie mbH
Brand
Signalbau Huth
Year: 1929–1931 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: RENS1204 REN904 RE134 RGN354
Main principle TRF with regeneration; 1 Special; 1 AF stage(s)
Tuned circuits 2 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Alternating Current supply (AC)
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: E 93 WH [Holz] - Huth, Signalbau AG, Dr. Erich
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 370 x 215 x 190 mm / 14.6 x 8.5 x 7.5 inch
Notes Trafokopplung
Net weight (2.2 lb = 1 kg) 5.1 kg / 11 lb 3.7 oz (11.233 lb)
Price in first year of sale 149.00 RM !
Collectors' prices
External source of data E. Erb 3-907007-36-0
Source of data Katalog Radio-Zentrale Prohaska 1930/31 (dick) / Radiokatalog Band 2, Ernst Erb
