67Z

67Z; Ika Radio Radio IKA; (ID = 2177888) Radio 67Z; Ika Radio Radio IKA; (ID = 2177889) Radio
67Z; Ika Radio Radio IKA; (ID = 2177890) Radio 67Z; Ika Radio Radio IKA; (ID = 2177891) Radio
67Z; Ika Radio Radio IKA; (ID = 2177892) Radio
Use red slider bar for more.

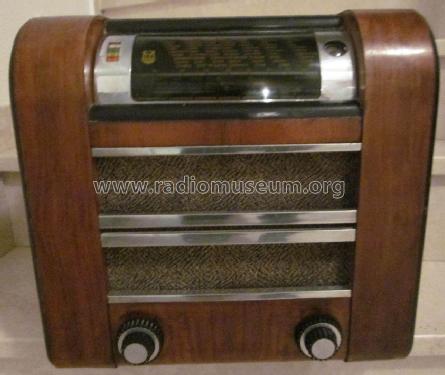

67Z; Ika Radio Radio IKA; (ID = 2177888) Radio
Ika Radio Radio IKA;: 67Z [Radio] ID = 2177888 1290x1085
Select picture or schematic to display from thumbnails on the right and click for download.
For model 67Z, Ika Radio (Radio IKA); Lódz+Litzmannstadt:
ebay 202120190628, mechiham

Country:  Poland
Manufacturer / Brand:  Ika Radio (Radio IKA); Lódz+Litzmannstadt
Year: 1937/1938 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: AK2 AF3 ABC1 AL4 AM1 AZ1
Main principle Super-Heterodyne (Super in general)
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 120-220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 17 cm = 6.7 inch
Power out
from Radiomuseum.org Model: 67Z - Ika Radio Radio IKA; Lódz+
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 410 x 385 x 300 mm / 16.1 x 15.2 x 11.8 inch
Notes Philips or Tungsram tubes: AK2= TAK2, AF3= TAF3, ABC1= TABC1, AM1, AL4= TAL4, AZ1= TAZ1.
Collectors' prices
Source of data - - Data from my own collection

Model page created by Maciej Bialecki. See "Data change" for further contributors.



All listed radios etc. from Ika Radio (Radio IKA); Lódz+Litzmannstadt
Here you find 28 models, 11 with images and 2 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
