• Country
• Germany

• Manufacturer / Brand
• Imperial Rundfunk und Fernseh (Kuba-Imperial, auch General Electric); Osterode/Harz, Hemmingen

• Year
• 1960/1961

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 305021

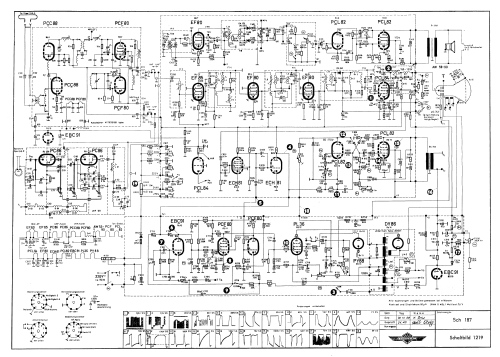

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 18

• Valves / Tubes
• PC86 PC86 PCC88 PCF80 EF80 EF80 EF85 PCL84 EF80 PCL82 ECH81 PCL82 EBC91 PCF80 PL36 PY88 DY86 AW47-91

• Main principle
• Superheterodyne (common); ZF/IF 38900 kHz

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• AC/DC-set / 220-230 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 3.2 W (unknown quality)

• from Radiomuseum.org
• Model: Fernseh-Koffer Super-Automatic Admiral 1219 - Imperial Rundfunk und Fernseh

• Shape
• Tablemodel, low profile (big size).

• Notes

• Auch ohne UHF lieferbar, dann 16 Röhren - ohne die 2x PC86.

• Mentioned in
• -- Original prospect or advert (Bedienungsanleitung)

• Author
• Model page created by Hilmer Grunert. See "Data change" for further contributors.
