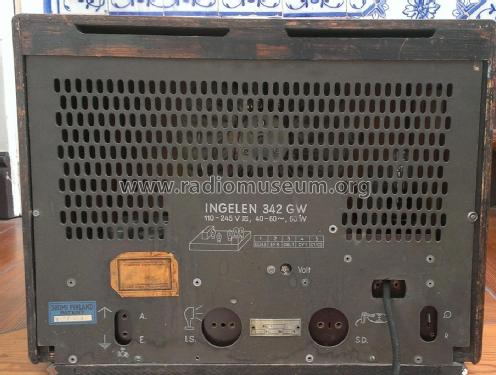

Ingelen,: 342GW [Radio] ID = 1842038 1400x1026
Select picture or schematic to display from thumbnails on the right and click for download.
For model 342GW, Ingelen, Elektrotechnische Fabrik Ing. Ludwig Neumann GmbH; Wien

Country:  Austria
Manufacturer / Brand:  Ingelen, Elektrotechnische Fabrik Ing. Ludwig Neumann GmbH; Wien
Brand

Elektrot.Fabrik Ludwig Neumann
Year: 1941/1942 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: ECH3 EF9 CBL1 CY1 C1
Main principle Super-Heterodyne (Super in general); ZF/IF 128 kHz
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage AC/DC-set
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 19 cm = 7.5 inch
Power out
from Radiomuseum.org Model: 342GW - Ingelen, Elektrotechnische
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 460 x 360 x 240 mm / 18.1 x 14.2 x 9.4 inch
Notes

Ch= Philips 655U. Sogenanntes Verlagerungsgerät.

External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb
Circuit diagram reference Lange+Schenk+FS-Röhrenbestückung
Mentioned in Funkgeschichte der GFGF (Nr. 234, 235, 236 (2017))
