Cronos W

Cronos W; Ingelen, (ID = 1301040) Radio

Cronos W; Ingelen, (ID = 1300304) Radio

Cronos W; Ingelen, (ID = 1300305) Radio

Cronos W; Ingelen, (ID = 1300303) Radio

Cronos W; Ingelen, (ID = 1301052) Radio

Cronos W; Ingelen, (ID = 1300292) Radio

Cronos W; Ingelen, (ID = 1300290) Radio
Cronos W; Ingelen, (ID = 2224287) Radio Cronos W; Ingelen, (ID = 2224288) Radio
Cronos W; Ingelen, (ID = 2224289) Radio Cronos W; Ingelen, (ID = 2224290) Radio
Cronos W; Ingelen, (ID = 38298) Radio Cronos W; Ingelen, (ID = 134061) Radio
Cronos W; Ingelen, (ID = 134064) Radio Cronos W; Ingelen, (ID = 134063) Radio
Cronos W; Ingelen, (ID = 134062) Radio Cronos W; Ingelen, (ID = 1445787) Radio
Use red slider bar for more.
Cronos W; Ingelen, (ID = 2224287) Radio
Ingelen,: Cronos W [Radio] ID = 2224287 1400x1050
Select picture or schematic to display from thumbnails on the right and click for download.
For model Cronos W, Ingelen, Elektrotechnische Fabrik Ing. Ludwig Neumann GmbH; Wien

Country:  Austria
Manufacturer / Brand:  Ingelen, Elektrotechnische Fabrik Ing. Ludwig Neumann GmbH; Wien
Brand

Elektrot.Fabrik Ludwig Neumann
Year: 1955/1956 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: ECH81 ECC85 EF85 EABC80 EM80 EL84 EZ80
Main principle Super-Heterodyne (Super in general); ZF/IF 459/10700 kHz
Tuned circuits 6 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast, Long Wave and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Cronos W - Ingelen, Elektrotechnische
Material Wooden case

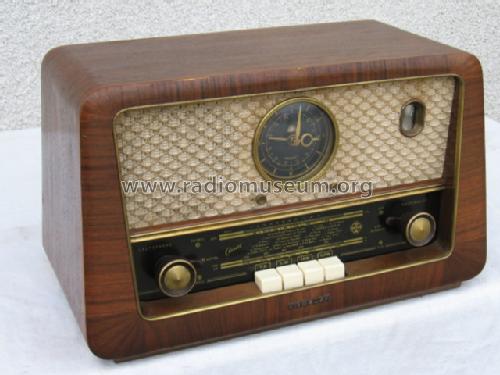

Shape Tablemodel with Push Buttons.
Dimensions (WHD) 420 x 248 x 210 mm / 16.5 x 9.8 x 8.3 inch
Notes

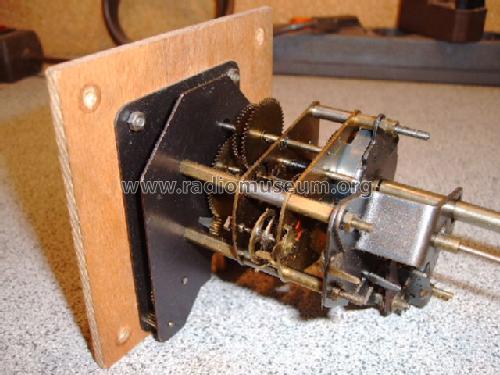

integrierte Schaltuhr;

Dieses Gerät besitzt keine Netztrennung. Bei solchen Geräten können Chassis und Buchsen etc. unter Netzspannung stehen, bei manchen auch, wenn es ausgeschaltet ist. Es besteht bei Berührung Lebensgefahr. Wir weisen nicht bei jedem solchen Modell darauf hin.

Net weight (2.2 lb = 1 kg) 6.3 kg / 13 lb 14 oz (13.877 lb)
Price in first year of sale 1,985.00 ATS
Collectors' prices
External source of data E. Erb 3-907007-36-0
Source of data -- Original-techn. papers. / Radiokatalog Band 2, Ernst Erb
Circuit diagram reference Unterlagen E.Erb


All listed radios etc. from Ingelen, Elektrotechnische Fabrik Ing. Ludwig Neumann GmbH; Wien
Here you find 437 models, 383 with images and 317 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
Ingelen,: Cronos W
Threads: 1 | Posts: 1
Hits: 1817     Replies: 0
ingelen: Cronos W
Gerhard Heigl
19.Jul.02
  1 Bereiche: LW,MW,UKW. Orig.Preis: 1985S, BHT: 420x250x210mm.

Ingelen,: Cronos W
