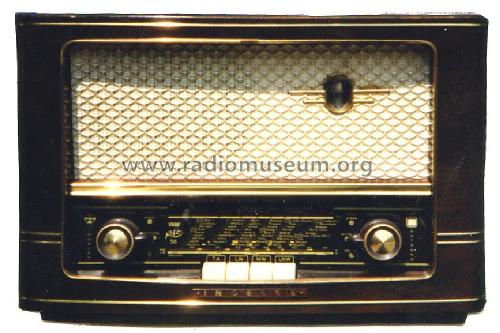

UKW Rio W; Ingelen, (ID = 49714) Radio
Ingelen,: UKW Rio W [Radio] ID = 49714 867x578
Select picture or schematic to display from thumbnails on the right and click for download.
For model UKW Rio W, Ingelen, Elektrotechnische Fabrik Ing. Ludwig Neumann GmbH; Wien:
Ingelen Rio

Country:  Austria
Manufacturer / Brand:  Ingelen, Elektrotechnische Fabrik Ing. Ludwig Neumann GmbH; Wien
Brand

Elektrot.Fabrik Ludwig Neumann
Year: 1955/1956 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: ECH81 ECC85 EF85 EABC80 EM80 EL84 EZ80
Main principle Superheterodyne (common); ZF/IF 459 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker 2 Loudspeakers
Power out
from Radiomuseum.org Model: UKW Rio W - Ingelen, Elektrotechnische
Material Wooden case
Notes 4 Tasten
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb
Circuit diagram reference Unterlagen E.Erb


All listed radios etc. from Ingelen, Elektrotechnische Fabrik Ing. Ludwig Neumann GmbH; Wien
Here you find 438 models, 385 with images and 318 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
