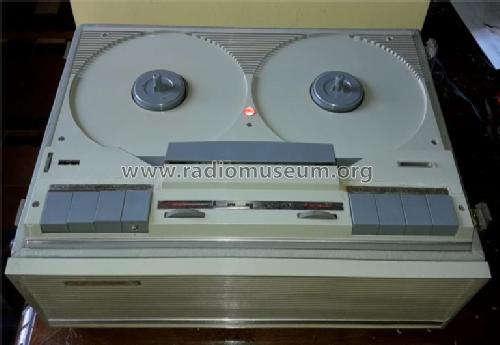

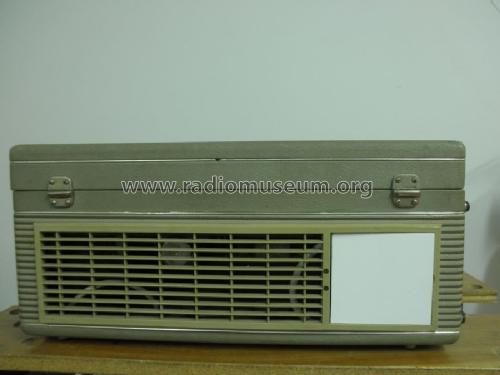

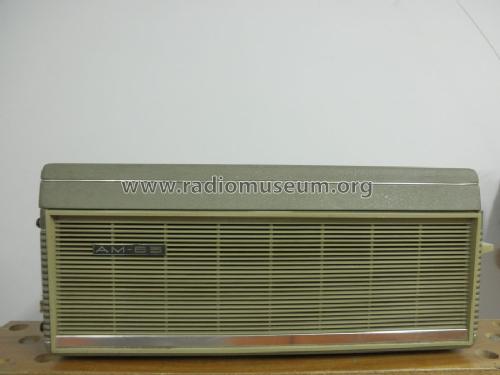

Magnetofono AM-63 con EL95

Magnetofono AM-63; Ingra; Barcelona (ID = 1500439) R-Player
Magnetofono AM-63; Ingra; Barcelona (ID = 1500430) R-Player Magnetofono AM-63; Ingra; Barcelona (ID = 1500431) R-Player
Magnetofono AM-63; Ingra; Barcelona (ID = 1500432) R-Player Magnetofono AM-63; Ingra; Barcelona (ID = 1500433) R-Player
Magnetofono AM-63; Ingra; Barcelona (ID = 1500435) R-Player Magnetofono AM-63; Ingra; Barcelona (ID = 1500436) R-Player
Magnetofono AM-63; Ingra; Barcelona (ID = 1500458) R-Player Magnetofono AM-63; Ingra; Barcelona (ID = 2305925) R-Player
Magnetofono AM-63; Ingra; Barcelona (ID = 2305926) R-Player Magnetofono AM-63; Ingra; Barcelona (ID = 2305928) R-Player
Use red slider bar for more.
Magnetofono AM-63; Ingra; Barcelona (ID = 1500430) R-Player
Ingra; Barcelona: Magnetofono AM-63 [R-Player] ID = 1500430 900x675
Select picture or schematic to display from thumbnails on the right and click for download.
For model Magnetofono AM-63 con EL95, Ingra; Barcelona

Country:  Spain
Manufacturer / Brand:  Ingra; Barcelona
Year: 1965 ?? Category: Sound/Video Recorder and/or Player
Valves / Tubes 5: EF86 ECC81 EL95 EL84 EM84
Semiconductors (the count is only for transistors) OA85
Main principle Audio-Amplification
Wave bands - without
Details Tape Recorder
Power type and voltage Alternating Current supply (AC) / 110; 125; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Magnetofono AM-63 [con EL95] - Ingra; Barcelona
Material Leather / canvas / plastic - over other material
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 420 x 190 x 320 mm / 16.5 x 7.5 x 12.6 inch
Notes

Se trata de una variante del modelo AM-63 con ECC81. Sin embargo este modelo incorpora la válvula EL95, pentodo, para la osciladora de borrado de cinta y polarización.

Sustituye dicha válvula uno de los triodos de la ECC81, y el otro triodo lo sustituye por un diodo de germanio OA85.

Net weight (2.2 lb = 1 kg) 13 kg / 28 lb 10.1 oz (28.634 lb)
Literature/Schematics (1) -- Schematic

Model page created by Jose Francisco Lama Barquero. See "Data change" for further contributors.
