CM514
Use red slider bar for more.

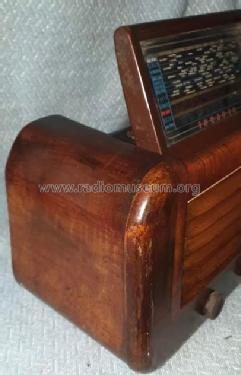

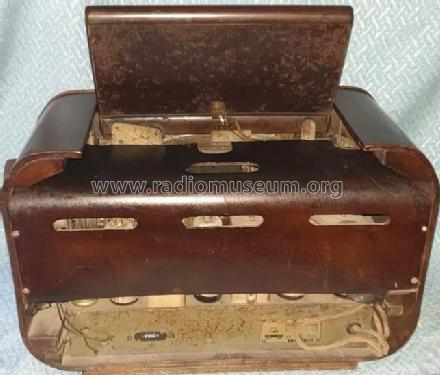

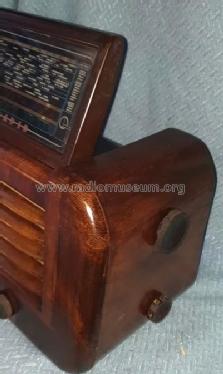

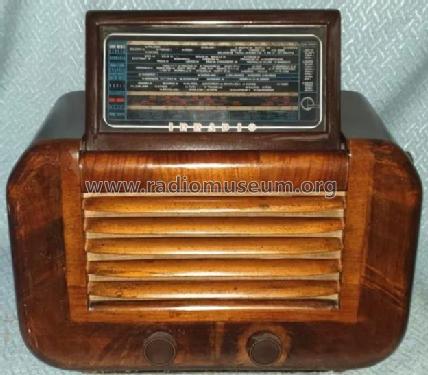

Irradio; Milano: CM514 [Radio] ID = 177636 240x204
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
| Year: 1940/1941 | Category: Broadcast Receiver - or past WW2 Tuner | ||||
| Valves / Tubes | 5: 6A8 6K7 6Q7 6V6GT 6X5 |
|---|
| Main principle | Superheterodyne (common); ZF/IF 450 kHz |
|---|---|
| Wave bands | Broadcast, Long Wave and Short Wave. |
| Details | |
| Power type and voltage | Alternating Current supply (AC) |
| Loudspeaker | Electro Magnetic Dynamic LS (moving-coil with field excitation coil) |
| Power out | |
| from Radiomuseum.org | Model: CM514 - Irradio; Milano |
| Dimensions (WHD) | 460 x 300 x 250 mm / 18.1 x 11.8 x 9.8 inch |
| Notes | Controllo di tono a tre posizioni. |
| Source of data | Il Radio Libro, (Ravalico) 8.Ed. |
| Mentioned in | Il Radio Libro, (Ravalico) 6a edizione 1942 |
Model page created by Alessandro De Poi. See "Data change" for further contributors.
