- Country
- Switzerland
- Manufacturer / Brand
- Jura; La Chaux-de-Fonds (eigentlich Zürich)
- Year
- 1935/1936
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 12084
ebay
ebay

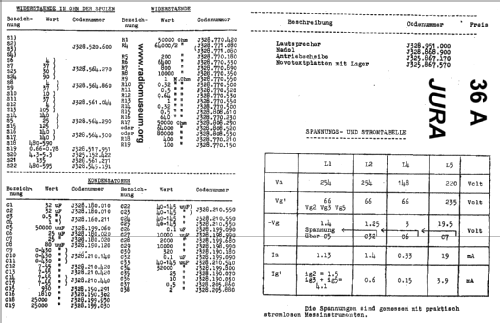

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 115 kHz; 2 AF stage(s)
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast (MW) and Long Wave.
- Power type and voltage
- Alternating Current supply (AC) / 105-115; 120-130; 140-160; 210-230; 240-260 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 21 inch = 53.3 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: 36A - Jura; La Chaux-de-Fonds
- Shape
- Tablemodel, high profile (upright - NOT Cathedral nor decorative).
- Dimensions (WHD)
- 350 x 440 x 220 mm / 13.8 x 17.3 x 8.7 inch
- Notes
-
This model is comparable with Siera S36A, Tenor T36A and Philips 525A.
- Net weight (2.2 lb = 1 kg)
- 12.5 kg / 27 lb 8.5 oz (27.533 lb)
- External source of data
- E. Erb 3-907007-36-0
- Source of data
- Radiokatalog Band 2, Ernst Erb
- Circuit diagram reference
- Thali-Schemasammlung und Tungsram-Röhrenbestückung.
- Other Models
-
Here you find 101 models, 83 with images and 42 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Jura; La Chaux-de-Fonds (eigentlich Zürich)
