S36A , S36A -23 Tubes AK1, AF2, AB1

S36A , S36A -23; Siera; Belgien (ID = 1922898) Radio

S36A , S36A -23; Siera; Belgien (ID = 1922899) Radio

S36A , S36A -23; Siera; Belgien (ID = 1922900) Radio

S36A , S36A -23; Siera; Belgien (ID = 1922901) Radio

S36A , S36A -23; Siera; Belgien (ID = 1922902) Radio

S36A , S36A -23; Siera; Belgien (ID = 1922903) Radio

S36A , S36A -23; Siera; Belgien (ID = 1922904) Radio

S36A , S36A -23; Siera; Belgien (ID = 1922905) Radio

S36A , S36A -23; Siera; Belgien (ID = 1922906) Radio

S36A , S36A -23; Siera; Belgien (ID = 1922907) Radio
S36A , S36A -23; Siera; Belgien (ID = 2166119) Radio S36A , S36A -23; Siera; Belgien (ID = 2166116) Radio
S36A , S36A -23; Siera; Belgien (ID = 2166121) Radio S36A , S36A -23; Siera; Belgien (ID = 2166120) Radio
S36A , S36A -23; Siera; Belgien (ID = 2166117) Radio S36A , S36A -23; Siera; Belgien (ID = 2166123) Radio
S36A , S36A -23; Siera; Belgien (ID = 783338) Radio S36A , S36A -23; Siera; Belgien (ID = 156462) Radio
S36A , S36A -23; Siera; Belgien (ID = 156460) Radio S36A , S36A -23; Siera; Belgien (ID = 156481) Radio
Use red slider bar for more.
S36A , S36A -23; Siera; Belgien (ID = 2166119) Radio
Siera; Belgien: S36A , S36A -23 [Radio] ID = 2166119 862x1000
Select picture or schematic to display from thumbnails on the right and click for download.
For model S36A , S36A -23 Tubes AK1, AF2, AB1, Siera; Belgien:
restaurado

Country:  Belgium
Manufacturer / Brand:  Siera; Belgien
Year: 1935 ? Category: Broadcast Receiver - or past WW2 Tuner

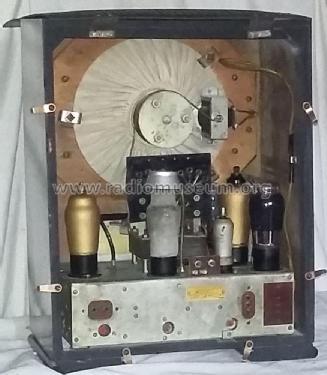

Valves / Tubes 6: AK1 AF2 AB1 SP4 or E446 PM24M or E443H DW2X or 506
Main principle Superheterodyne (common); ZF/IF 115 kHz; 2 AF stage(s)
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Alternating Current supply (AC) / 105-115; 120-130; 140-160; 210-230; 240-260 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 21 cm = 8.3 inch
Power out
from Radiomuseum.org Model: S36A , S36A -23 [Tubes AK1, AF2, AB1] - Siera; Belgien
Material Wooden case
Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).
Dimensions (WHD) 350 x 410 x 240 mm / 13.8 x 16.1 x 9.4 inch
Notes

Hinweisschild: Patent-Norge NR 19726 Aga-Baltic RadioA.B, Hazeltine Corp,Stand.Elektric,Philips,Telef.
2 Band reception:
  • S36A without suffix:
    • LW: 760 - 1900 m.
    • BC: 199 - 552 m.
  • S36A -23
    • LW: 760 - 1950 m.
    • BC: 210 - 570 m.
Tuning scale light bulb type: 8046 (6V, 500mA).
Loudspeaker Philips type 4283. Connectors for second loudspeaker and for pick-up.

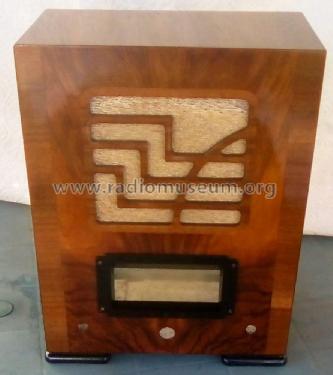

Cabinet in varnished walnut.

There is a Siera type S36A with Mullard tubes.

This model is comparable with Tenor T36AJura 36A and Philips 525A.

Net weight (2.2 lb = 1 kg) 11.7 kg / 25 lb 12.3 oz (25.771 lb)
Price in first year of sale 140.00 RM
Mentioned in - - Manufacturers Literature (Siera memento of tubes and models 1932-1946)
Literature/Schematics (1) -- Original-techn. papers.

Model page created by Gerd Schlotterer. See "Data change" for further contributors.
