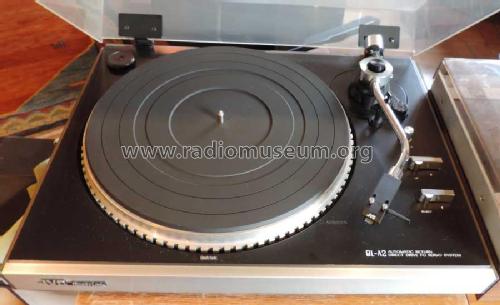

Quartz-Locked Direct-Drive Turntable QL-A2

JVC - Victor Company of Japan, Ltd.; Tokyo

  • Year
  • 1978
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 296788

 Technical Specifications

  • Wave bands
  • - without
  • Details
  • Record Player (not changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 110-240 Volt
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Bakelite or Plastics (type unknown)
  • from Radiomuseum.org
  • Model: Quartz-Locked Direct-Drive Turntable QL-A2 - JVC - Victor Company of Japan,
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 460 x 147 x 365 mm / 18.1 x 5.8 x 14.4 inch
  • Notes
  • Halbautomatischer Plattenspieler mit Plexiglashaube, Geschwindigkeitem 45/33 Upm, Tonarmrückführung und Abschaltung. Tonabnehmersystem MD-1025 mit Nadel DT-Z1S Diamant, Auflagegewicht 2 Gramm.

    Reparaturhilfe:

    Bei diesem Gerät ist ein oftmals auftretenden Fehler dass keine Synchronisation bei 33 Upm möglich ist. Neben das Reinigen des 45/33 Upm-Schalters gibt es die Möglichkeit eines scheinbar fehlerhaften IC802 (SM 6415A-4S von NPC) wieder zu beleben.
    Eingangspin 12 (Schalten des 20- oder 27-Teilers auf 27) sollte bei 33 Upm nahezu auf 0 Volt zurückfallen. Falls dies nicht der Fall ist gibt ein Pulldown-Widerstand von 820 Ohm nach Ground Aushilfe. Man kann diesen Widerstand an der Lötseite zwischen Pin 12 und ein Groundpin (z.B. Pin 14) löten. Nach diesen Eingriff funktioniert die Synchronisation auch bei 33 Upm meistens wieder einwandfrei.

    -----------------------------------------

    Semi-automatic turntable with plexiglass cover, speeds 45/33 rpm, tonearm return and switch-off. Pickup system MD-1025 with needle DT-Z1S Diamond, weight 2 grams.

    Repair hint:

    A common error with this device is that synchronization is not possible at 33 rpm. In addition to cleaning the 45/33 rpm switch, there is the possibility of reviving an apparently faulty IC802 (SM 6415A-4S from NPC).

    Input pin 12 (switching the 20 or 27 dividers to 27) should drop almost to 0 volts at 33 rpm. If this is not the case, a pull-down resistor of 820 ohms to ground will help. You can solder this resistor on the solder side between pin 12 and a ground pin (e.g., pin 14).

    After this intervention, the synchronization usually works perfectly again, even at 33 rpm.

  • Net weight (2.2 lb = 1 kg)
  • 6.5 kg / 14 lb 5.1 oz (14.317 lb)
  • Author
  • Model page created by Felix Kreitlow. See "Data change" for further contributors.
