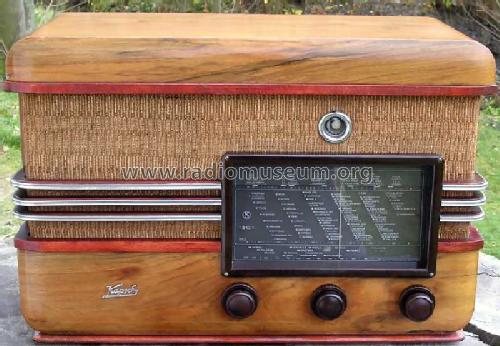

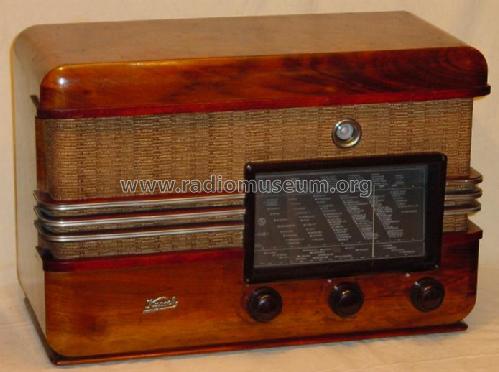

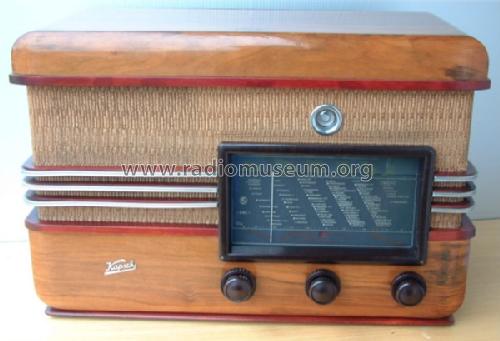

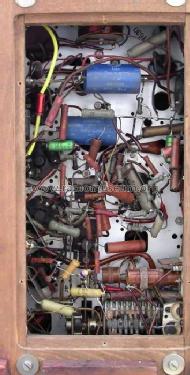

540-W; Kapsch & Söhne KS, (ID = 2418539) Radio
Kapsch & Söhne KS,: 540-W [Radio] ID = 2418539 1400x1255
Select picture or schematic to display from thumbnails on the right and click for download.
For model 540-W, Kapsch & Söhne (KS), Telephon- und Telegraphenfabriks-AG; Wien:
This radio is part of the Kraker collection at the Sisak Municipal Museum.

Country:  Austria
Manufacturer / Brand:  Kapsch & Söhne (KS), Telephon- und Telegraphenfabriks-AG; Wien
Year: 1939/1940 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECH11 EBF11 EF11 EL11 EM11 EZ12
Main principle Superheterodyne (common); ZF/IF 129,5 kHz
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 22 cm = 8.7 inch
Power out
from Radiomuseum.org Model: 540-W - Kapsch & Söhne KS, Telephon-
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 499 x 345 x 295 mm / 19.6 x 13.6 x 11.6 inch
Notes Variable Bandbreite
Net weight (2.2 lb = 1 kg) 13.5 kg / 29 lb 11.8 oz (29.736 lb)
Price in first year of sale 288.00 RM
Collectors' prices
External source of data E. Erb 3-907007-36-0
Source of data Handbuch WDRG 1939 / Radiokatalog Band 2, Ernst Erb

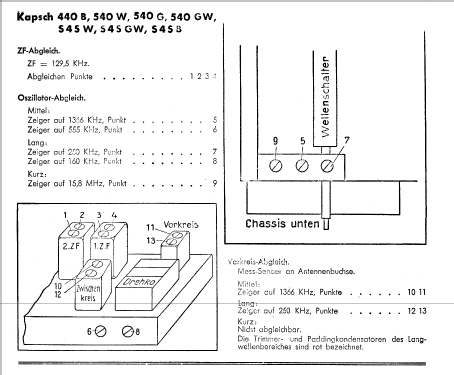

Circuit diagram reference Lange+Schenk+FS-Röhrenbestückung
Mentioned in Historische Radios Band IV (221B")
Literature/Schematics (1) Museums Bote, Österr. (Heft 112-113/2002, S.16, Kurzbeschreibung)
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.
