Dirigent U (GW)

Dirigent U ; Kapsch & Söhne KS, (ID = 602214) Radio

Dirigent U ; Kapsch & Söhne KS, (ID = 9223) Radio
Dirigent U ; Kapsch & Söhne KS, (ID = 27789) Radio
Use red slider bar for more.
Dirigent U ; Kapsch & Söhne KS, (ID = 27789) Radio
Kapsch & Söhne KS,: Dirigent U [Radio] ID = 27789 506x640
Select picture or schematic to display from thumbnails on the right and click for download.
For model Dirigent U (GW), Kapsch & Söhne (KS), Telephon- und Telegraphenfabriks-AG; Wien

Country:  Austria
Manufacturer / Brand:  Kapsch & Söhne (KS), Telephon- und Telegraphenfabriks-AG; Wien
Year: 1936/1937 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: CK1 CF7 CB2 CL4 CY1 EUVI or EUXX
Main principle Superheterodyne (common); ZF/IF 128 kHz
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage AC/DC-set / 090-240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Dirigent U - Kapsch & Söhne KS, Telephon-
Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).
Notes ZF128,5;Abst.Anz.
Price in first year of sale 443.00 öS
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb

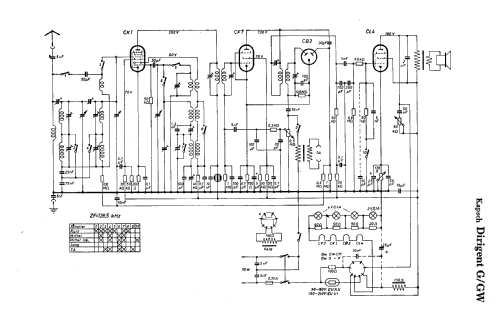

Circuit diagram reference Lange + Schenk
Mentioned in Museums Bote, Österr. (Heft 110/2002, S.5, Kurzbeschreibung)
