For model Dirigent W, Kapsch & Söhne (KS), Telephon- und Telegraphenfabriks-AG; Wien:

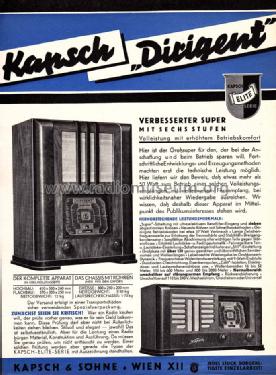

Kapsch Dirigent W (Elite-Serie)

Country:  Austria
Manufacturer / Brand:  Kapsch & Söhne (KS), Telephon- und Telegraphenfabriks-AG; Wien
Year: 1936/1937 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: AK2 AF7 AB2 AL1 AZ1
Main principle Superheterodyne (common); ZF/IF 128 kHz
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: Dirigent W - Kapsch & Söhne KS, Telephon-
Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).
Notes ZF=128,5
Price in first year of sale 418.00 öS
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb
Circuit diagram reference Lange+Schenk+FS-Röhrenbestückung
Mentioned in Museums Bote, Österr. (Heft 110/2002, S.5, Kurzbeschreibung)
