Dirigent W Flachbau

Dirigent W Flachbau; Kapsch & Söhne KS, (ID = 9220) Radio

Dirigent W Flachbau; Kapsch & Söhne KS, (ID = 340780) Radio

Dirigent W Flachbau; Kapsch & Söhne KS, (ID = 602211) Radio
Dirigent W Flachbau; Kapsch & Söhne KS, (ID = 130836) Radio Dirigent W Flachbau; Kapsch & Söhne KS, (ID = 130845) Radio
Dirigent W Flachbau; Kapsch & Söhne KS, (ID = 718316) Radio Dirigent W Flachbau; Kapsch & Söhne KS, (ID = 130838) Radio
Dirigent W Flachbau; Kapsch & Söhne KS, (ID = 718311) Radio Dirigent W Flachbau; Kapsch & Söhne KS, (ID = 718314) Radio
Dirigent W Flachbau; Kapsch & Söhne KS, (ID = 718320) Radio
Use red slider bar for more.
Dirigent W Flachbau; Kapsch & Söhne KS, (ID = 130836) Radio

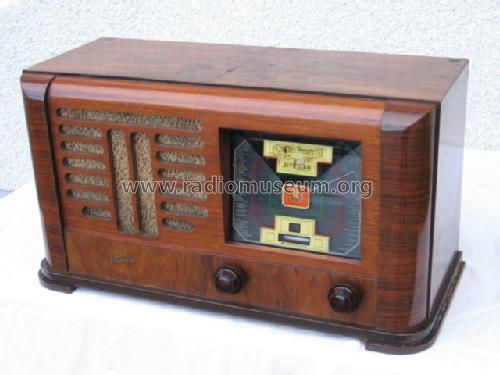

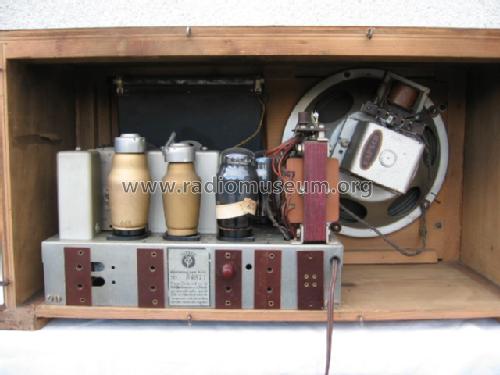

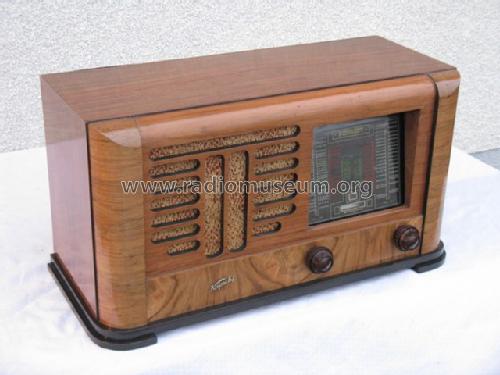

Kapsch & Söhne KS,: Dirigent W Flachbau [Radio] ID = 130836 640x480
Select picture or schematic to display from thumbnails on the right and click for download.
For model Dirigent W Flachbau, Kapsch & Söhne (KS), Telephon- und Telegraphenfabriks-AG; Wien:
Kapsch Dirigent-W (Elite-Serie)

Country:  Austria
Manufacturer / Brand:  Kapsch & Söhne (KS), Telephon- und Telegraphenfabriks-AG; Wien
Year: 1936/1937 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: AK2 AF7 AB2 AL1 AZ1
Main principle Superheterodyne (common); ZF/IF 128 kHz
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: Dirigent W Flachbau - Kapsch & Söhne KS, Telephon-
Notes Flachbau
Price in first year of sale 418.00 öS
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb

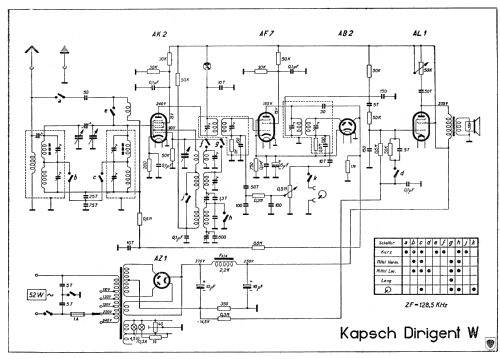

Circuit diagram reference Lange+Schenk+FS-Röhrenbestückung
Mentioned in Museums Bote, Österr. (Heft 110/2002, S.5, Kurzbeschreibung)


All listed radios etc. from Kapsch & Söhne (KS), Telephon- und Telegraphenfabriks-AG; Wien
Here you find 606 models, 498 with images and 374 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
