Melavox A (GW)

Melavox A ; Kapsch & Söhne KS, (ID = 9302) Radio

Melavox A ; Kapsch & Söhne KS, (ID = 2120572) Radio
Melavox A ; Kapsch & Söhne KS, (ID = 2252649) Radio Melavox A ; Kapsch & Söhne KS, (ID = 134078) Radio
Melavox A ; Kapsch & Söhne KS, (ID = 134081) Radio Melavox A ; Kapsch & Söhne KS, (ID = 134080) Radio
Melavox A ; Kapsch & Söhne KS, (ID = 134079) Radio Melavox A ; Kapsch & Söhne KS, (ID = 790042) Radio
Melavox A ; Kapsch & Söhne KS, (ID = 790043) Radio Melavox A ; Kapsch & Söhne KS, (ID = 790044) Radio
Melavox A ; Kapsch & Söhne KS, (ID = 790045) Radio Melavox A ; Kapsch & Söhne KS, (ID = 790046) Radio
Use red slider bar for more.
Melavox A ; Kapsch & Söhne KS, (ID = 2252649) Radio

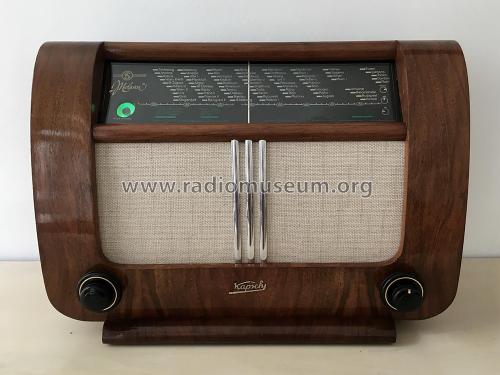

Kapsch & Söhne KS,: Melavox A [Radio] ID = 2252649 1000x750
Select picture or schematic to display from thumbnails on the right and click for download.
For model Melavox A (GW), Kapsch & Söhne (KS), Telephon- und Telegraphenfabriks-AG; Wien

Country:  Austria
Manufacturer / Brand:  Kapsch & Söhne (KS), Telephon- und Telegraphenfabriks-AG; Wien
Year: 1949/1950 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: UCH21 UCH21 UBL21 UY1N UM4
Main principle Superheterodyne (common); ZF/IF 452 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage AC/DC-set / 110-125 / 150-220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 18 cm = 7.1 inch
Power out 2.5 W (unknown quality)
from Radiomuseum.org Model: Melavox A - Kapsch & Söhne KS, Telephon-
Material Wooden case
Dimensions (WHD) 474 x 338 x 220 mm / 18.7 x 13.3 x 8.7 inch
Notes Wellenbereiche: LW 880...2000 kHz; MW 200...550m; KW 20...50m. Anschlüsse für Phono und Aussenlautsprecher. 2 Skalenlampen 18V / 0,1A. 1 Glasrohrsicherung 5 x 20 / 0,5A. Mit oder ohne NTC
Net weight (2.2 lb = 1 kg) 7.4 kg / 16 lb 4.8 oz (16.3 lb)
Price in first year of sale 1'350.00 öS
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb
Circuit diagram reference Lange-Nowisch
Mentioned in Radio-Mentor (4908)
Literature/Schematics (1) Museums Bote, Österr. (Heft 116/2003, S.6, Gerätebeschreibung)


All listed radios etc. from Kapsch & Söhne (KS), Telephon- und Telegraphenfabriks-AG; Wien
Here you find 605 models, 497 with images and 374 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
