Melodie ; Kapsch & Söhne KS, (ID = 666359) Radio
Kapsch & Söhne KS,: Melodie [Radio] ID = 666359 715x541

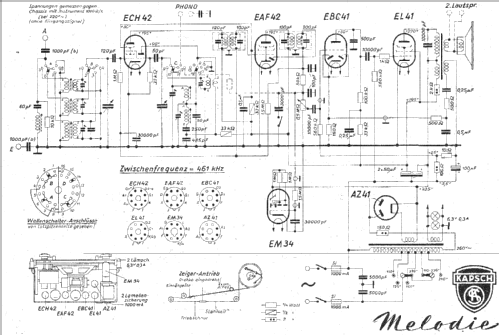

Select picture or schematic to display from thumbnails on the right and click for download.
For model Melodie, Kapsch & Söhne (KS), Telephon- und Telegraphenfabriks-AG; Wien

Country:  Austria
Manufacturer / Brand:  Kapsch & Söhne (KS), Telephon- und Telegraphenfabriks-AG; Wien
Year: 1953/1954 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECH42 EAF42 EBC41 EL41 EM34 AZ41
Main principle Superheterodyne (common); ZF/IF 461 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110, 125, 150, 220, 240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Melodie - Kapsch & Söhne KS, Telephon-
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 335 x 230 x 165 mm / 13.2 x 9.1 x 6.5 inch
Net weight (2.2 lb = 1 kg) 4.9 kg / 10 lb 12.7 oz (10.793 lb)
Price in first year of sale 1'095.00 ATS
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb
Mentioned in Museums Bote, Österr. (Heft 119-120/2003, S.8, Kurzbeschreibung)


All listed radios etc. from Kapsch & Söhne (KS), Telephon- und Telegraphenfabriks-AG; Wien
Here you find 605 models, 497 with images and 374 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
Kapsch & Söhne KS,: Melodie
Threads: 1 | Posts: 1
Hits: 1586     Replies: 0
kapsch1: Melodie
Gerhard Heigl
23.Sep.02
  1 6 Kreise; Bereiche: LW,MW,KW; Gewicht: 4,85 kg; Preis: 1095 S; Betrieb: 110- 240V~ 50VA; Gehäuse: Holz; BHT: 335x230x165 mm. 6 Röhren: ECH42, EAF42, EBC41, EL41, AZ41, EM34.
