• Year
  • 1938/1939
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 9461

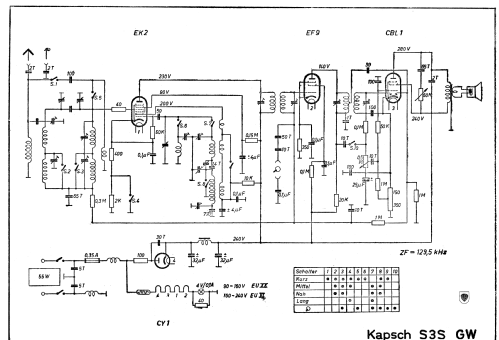

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 4
  • Main principle
  • Superheterodyne (common); ZF/IF 129 kHz
  • Tuned circuits
  • 7 AM circuit(s)
  • Wave bands
  • Broadcast, Long Wave and Short Wave.
  • Power type and voltage
  • AC/DC-set / 110-240 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: S3S GW - Kapsch & Söhne KS, Telephon-
  • Dimensions (WHD)
  • 433 x 327 x 290 mm / 17 x 12.9 x 11.4 inch
  • Net weight (2.2 lb = 1 kg)
  • 9.5 kg / 20 lb 14.8 oz (20.925 lb)
  • Price in first year of sale
  • 235.00 RM
  • External source of data
  • E. Erb 3-907007-36-0
  • Circuit diagram reference
  • Lange+Schenk+FS-Röhrenbestückung
  • Picture reference

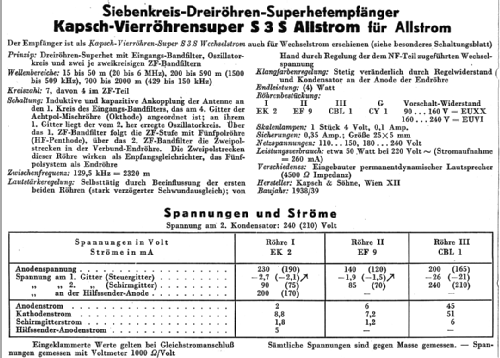

  • Das Modell ist im «Radiokatalog» (Erb) abgebildet.
