• Country
• Austria

• Manufacturer / Brand
• Kapsch & Söhne (KS), Telephon- und Telegraphenfabriks-AG; Wien

• Year
• 1954/1955

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 9539

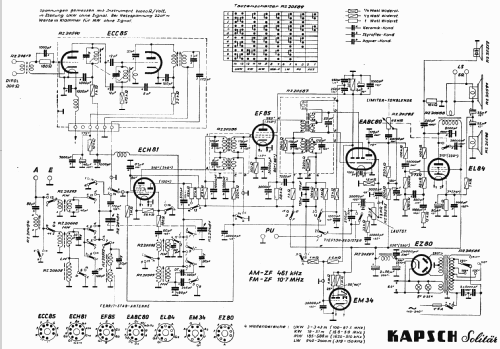

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• ECC85 ECH81 EF85 EABC80 EM34 EL84 EZ80

• Main principle
• Superheterodyne (common); ZF/IF 461/10700 kHz

• Tuned circuits
• 6 AM circuit(s)     9 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 150; 220; 240 Volt

• Loudspeaker
• 3 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org
• Model: Solitär Wechselstrom - Kapsch & Söhne KS, Telephon-

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 550 x 355 x 230 mm / 21.7 x 14 x 9.1 inch

• Notes

• Besonderheiten:

  • 3D Raumklang
  • Skalenlämpchen 8V 0,25A

• Net weight (2.2 lb = 1 kg)
• 11.8 kg / 25 lb 15.9 oz (25.991 lb)

• Price in first year of sale
• 2,095.00 ATS

• External source of data
• E. Erb 3-907007-36-0

• Source of data
• Radiokatalog Band 2, Ernst Erb
