Star W ; Kapsch & Söhne KS, (ID = 1380922) Radio

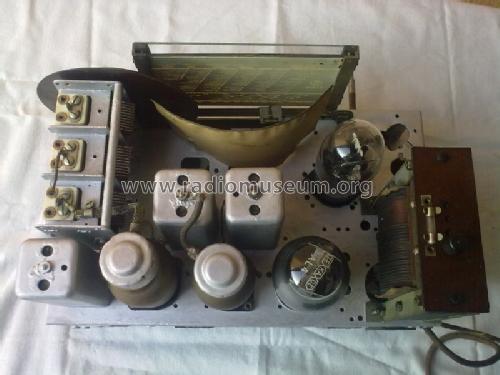

Kapsch & Söhne KS,: Star W [Radio] ID = 1380922 800x600
Select picture or schematic to display from thumbnails on the right and click for download.
For model Star W, Kapsch & Söhne (KS), Telephon- und Telegraphenfabriks-AG; Wien

Country:  Austria
Manufacturer / Brand:  Kapsch & Söhne (KS), Telephon- und Telegraphenfabriks-AG; Wien
Year: 1937/1938 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: AK2 AF7 AL1 AZ1
Main principle Superheterodyne (common); ZF/IF 128,5 kHz; 2 AF stage(s); Reflex
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 15 cm = 5.9 inch
Power out 3 W (unknown quality)
from Radiomuseum.org Model: Star W - Kapsch & Söhne KS, Telephon-
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 570 x 320 x 220 mm / 22.4 x 12.6 x 8.7 inch
Notes

Siehe auch Star W Querfomat
und ...........Star W Hochformat

Der ZF-Verstärker (AF7) wird in Reflexschaltung als erste NF-Stufe verwendet.

Net weight (2.2 lb = 1 kg) 9 kg / 19 lb 13.2 oz (19.824 lb)

Model page created by Mihály Horn. See "Data change" for further contributors.
