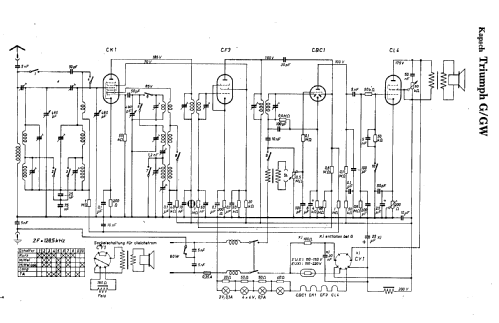

Triumph G Elite Serie; Kapsch & Söhne KS, (ID = 9269) Radio
Triumph G Elite Serie; Kapsch & Söhne KS, (ID = 27783) Radio Triumph G Elite Serie; Kapsch & Söhne KS, (ID = 632108) Radio
Triumph G Elite Serie; Kapsch & Söhne KS, (ID = 1358819) Radio Triumph G Elite Serie; Kapsch & Söhne KS, (ID = 1358820) Radio
Triumph G Elite Serie; Kapsch & Söhne KS, (ID = 1358821) Radio Triumph G Elite Serie; Kapsch & Söhne KS, (ID = 1358823) Radio
Triumph G Elite Serie; Kapsch & Söhne KS, (ID = 1358825) Radio Triumph G Elite Serie; Kapsch & Söhne KS, (ID = 1609017) Radio
Triumph G Elite Serie; Kapsch & Söhne KS, (ID = 1609018) Radio Triumph G Elite Serie; Kapsch & Söhne KS, (ID = 1609024) Radio
Use red slider bar for more.

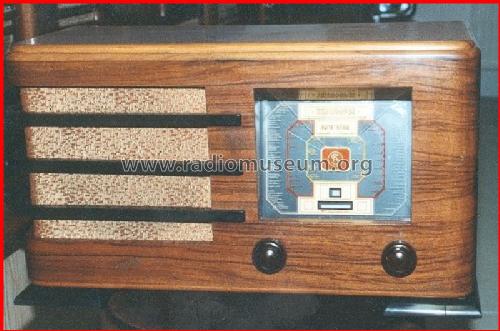

Triumph G Elite Serie; Kapsch & Söhne KS, (ID = 27783) Radio
Kapsch & Söhne KS,: Triumph G Elite Serie [Radio] ID = 27783 800x530
Select picture or schematic to display from thumbnails on the right and click for download.
For model Triumph G Elite Serie (Quer), Kapsch & Söhne (KS), Telephon- und Telegraphenfabriks-AG; Wien

Country:  Austria
Manufacturer / Brand:  Kapsch & Söhne (KS), Telephon- und Telegraphenfabriks-AG; Wien
Year: 1936/1937 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: CK1 CF3 CBC1 CL4 EU
Main principle Superheterodyne (common); ZF/IF 128,5 kHz
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Direct Current supply (DC) / 110-220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Triumph G Elite Serie - Kapsch & Söhne KS, Telephon-
Material Wooden case
Shape Tablemodel, low profile (big size).
Notes Abstimmanzeige mit Messinstrument.
Price in first year of sale 468.00 öS
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb
Circuit diagram reference Lange+Schenk+FS-Röhrenbestückung
Mentioned in Museums Bote, Österr. (Heft 110/2002, S.7, Kurzbeschreibung)
