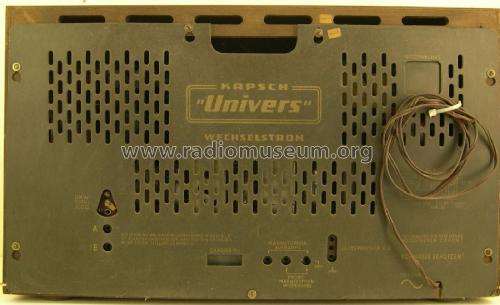

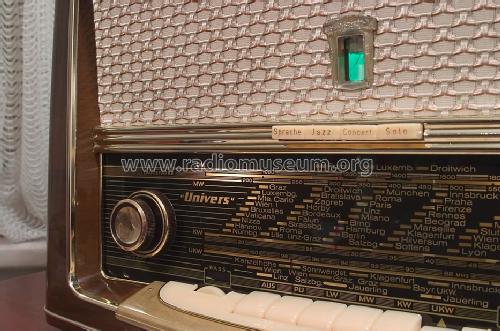

Univers Wechselstrom

• Country
• Austria

• Manufacturer / Brand
• Kapsch & Söhne (KS), Telephon- und Telegraphenfabriks-AG; Wien

• Year
• 1957/1958

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 73711

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• ECC85 ECH81 EF89 EABC80 EM81 EL84 EZ80

• Main principle
• Superheterodyne (common); ZF/IF 480/10700 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)     9 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 150; 220; 240 Volt

• Loudspeaker
• 3 Loudspeakers

• Power out
• 2.5 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Univers Wechselstrom - Kapsch & Söhne KS, Telephon-

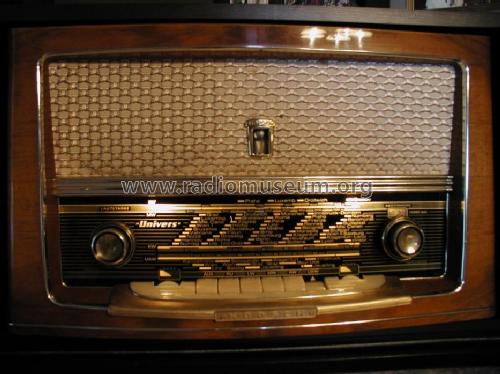

• Shape

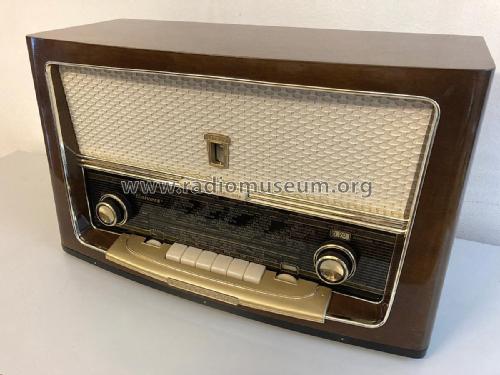

• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 525 x 306 x 235 mm / 20.7 x 12 x 9.3 inch

• Notes

• 3-D Raumklang durch 3 Lautsprecher:

  • Tiefton, oval
  • Mittelton 13 cm;
  • Hochton 8 cm (elektrostatisch).

  Besondere Bauteile:

  • Skalenlämpchen 7V 0,3A

• Net weight (2.2 lb = 1 kg)
• 11 kg / 24 lb 3.7 oz (24.229 lb)

• Price in first year of sale
• 2,195.00 ATS

• Source of data
• Radiokatalog Band 2, Ernst Erb

• Mentioned in
• Museums Bote, Österr. (Heft 122/2004, S.5, Kurzbeschreibung)

• Literature/Schematics (1)
• -- Original-techn. papers.
