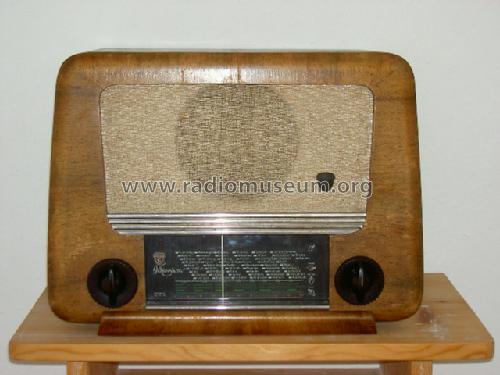

Kapsch & Söhne KS,: Viktoria 51H Allstrom [Radio] ID = 65465 640x480

Select picture or schematic to display from thumbnails on the right and click for download.

For model Viktoria 51H Allstrom, Kapsch & Söhne (KS), Telephon- und Telegraphenfabriks-AG; Wien

Country:

Austria

Manufacturer / Brand:

Kapsch & Söhne (KS), Telephon- und Telegraphenfabriks-AG; Wien

Year: 1951/1952

Category: Broadcast Receiver - or past WW2 Tuner

Valves / Tubes

4: UCH21 UCH21 UBL21 UY1N

Semiconductors (the count is only for transistors)

NTC-Resistor

Main principle	Super-Heterodyne (Super in general); ZF/IF 452 kHz
Tuned circuits	6 AM circuit(s)
Wave bands	Ready for FM, has Broadcast, Long Wave, Short wave.
Details
Power type and voltage	AC/DC-set / 110; 125; 150; 220; 240 Volt
Loudspeaker	Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 17 cm = 6.7 inch
Power out
from Radiomuseum.org	Model: Viktoria 51H Allstrom - Kapsch & Söhne KS, Telephon-
Material	Wooden case
Shape	Tablemodel, with any shape - general.
Dimensions (WHD)	430 x 320 x 270 mm / 16.9 x 12.6 x 10.6 inch
Notes	Vorbereitet für UKW-Einbaugerät mit UF42 und UAF42.
Net weight (2.2 lb = 1 kg)	7.5 kg / 16 lb 8.3 oz (16.52 lb)
Price in first year of sale	1'540.00 ATS
Collectors' prices
External source of data	E. Erb 3-907007-36-0
Source of data	Radiokatalog Band 2, Ernst Erb
Circuit diagram reference	Lange-Nowisch
Mentioned in	Museums Bote, Österr. (Heft 118/2003, S.5, Kurzbeschreibung)
Literature/Schematics (1)	-- Original-techn. papers.

All listed radios etc. from Kapsch & Söhne (KS), Telephon- und Telegraphenfabriks-AG; Wien
Here you find 606 models, 498 with images and 369 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.

Collection of Martin Fichtinger (A)

Collection of Rudolf Pirker (A)

Collection of Cristiano Botta (I)
