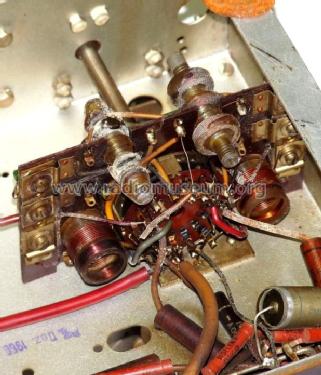

Viktoria 52 Wechselstrom; Kapsch & Söhne KS, (ID = 790804) Radio Viktoria 52 Wechselstrom; Kapsch & Söhne KS, (ID = 1129720) Radio
Use red slider bar for more.
Viktoria 52 Wechselstrom; Kapsch & Söhne KS, (ID = 790802) Radio
Kapsch & Söhne KS,: Viktoria 52 Wechselstrom [Radio] ID = 790802 780x601
Select picture or schematic to display from thumbnails on the right and click for download.
For model Viktoria 52 Wechselstrom, Kapsch & Söhne (KS), Telephon- und Telegraphenfabriks-AG; Wien

Country:  Austria
Manufacturer / Brand:  Kapsch & Söhne (KS), Telephon- und Telegraphenfabriks-AG; Wien
Year: 1952/1953 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECH42 EAF42 EBC41 EL41 EM34 AZ41
Main principle Superheterodyne (common); ZF/IF 468 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 130; 150; 180;220; 240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 17 cm = 6.7 inch
Power out 3 W (unknown quality)
from Radiomuseum.org Model: Viktoria 52 Wechselstrom - Kapsch & Söhne KS, Telephon-
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 520 x 370 x 280 mm / 20.5 x 14.6 x 11 inch
Notes Vorbereitet für UKW-Einbaugerät mit EF42 und EF41. Anschluß für Phono / UKW und 2. Lautsprecher (3 Ohm).
Net weight (2.2 lb = 1 kg) 10 kg / 22 lb 0.4 oz (22.026 lb)
Price in first year of sale 1'950.00 ATS
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb
Circuit diagram reference Lange-Nowisch
Mentioned in Museums Bote, Österr. (Heft 119-120/2003, S.4, Kurzbeschreibung)
Literature/Schematics (1) -- Original-techn. papers.
