For model 59-ML, Kastell; Madrid:

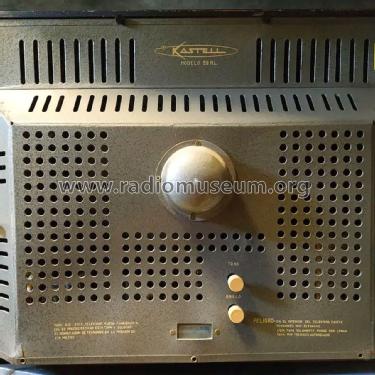

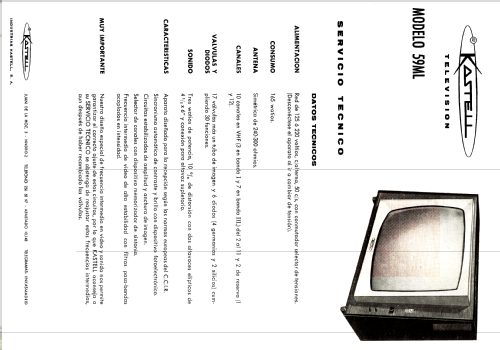

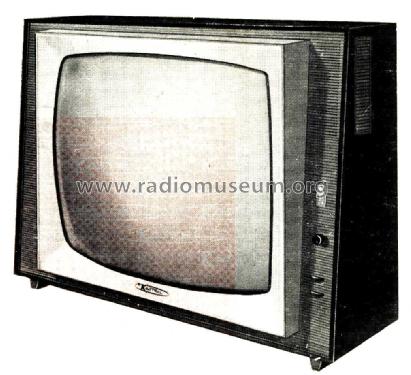

Imagen del manual

Country:  Spain
Manufacturer / Brand:  Kastell; Madrid
Year: 1963 Category: Television Receiver (TV) or Monitor
Valves / Tubes 18: PCC189 PCF86 EF183 EF183 EF184 PCL84 PCF80 ECH84 PCF80 PCF80 PCL85 PL36 PY88 DY87 EF80 EF80 PCL86 AW59-90
Semiconductors (the count is only for transistors) OA70 OA70 OA85 OA210
Main principle Superhet with RF-stage; ZF/IF 38900 kHz; 2 AF stage(s)
Wave bands VHF incl. FM and/or UHF (see notes for details)
Details
Power type and voltage Alternating Current supply (AC) / 125; 220 Volt
Loudspeaker 2 Loudspeakers
Power out 3 W (undistorted)
from Radiomuseum.org Model: 59-ML - Kastell; Madrid
Material Wooden case
Shape Tablemodel, low profile (big size).
Notes

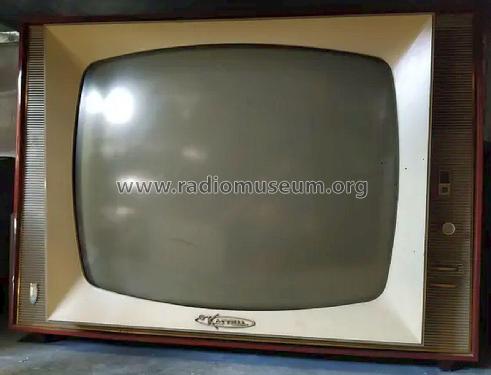

Kastell 59-ML

TV B/N 23" con selector rotativo de VHF (canales 2-11)

Dos altavoces elípticos de 4,5 x 6".

Puede funcionar con redes de corriente continua polarizando el enchufe para que sea el negativo de la red el que vaya al chasis.

Véase mismo modelo en 19" 47-ML

Price in first year of sale 19'889.00 ESP

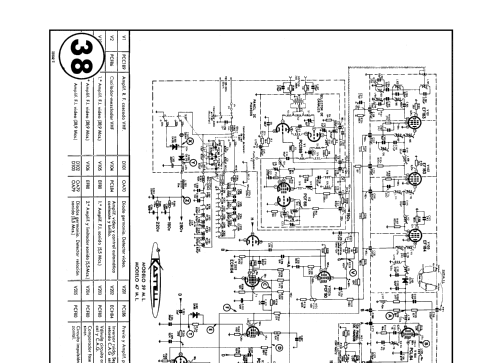

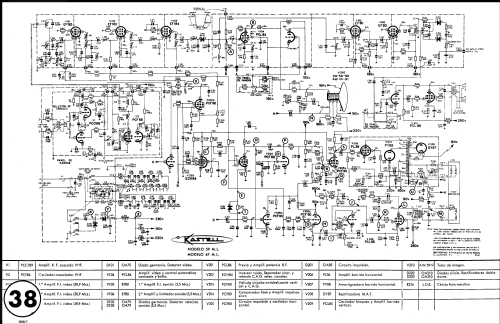

Mentioned in Hoja del lunes, Barcelona, mayo 1963; Esquemario TV REDE, Tomo I, 1964

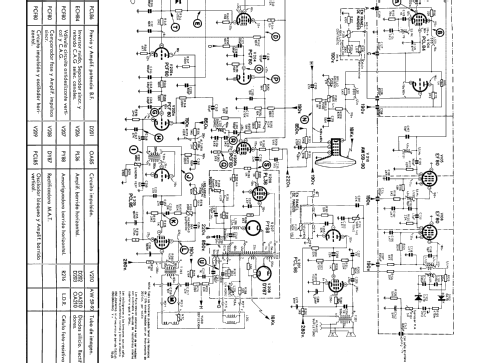

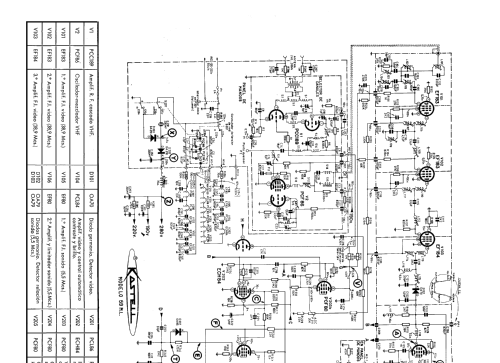

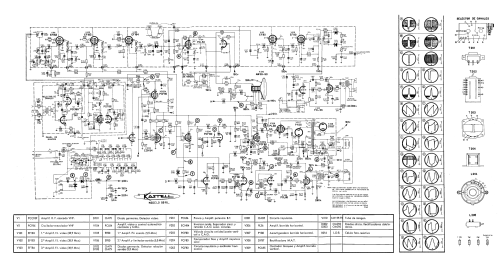

Literature/Schematics (1) -- Original-techn. papers.

Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
