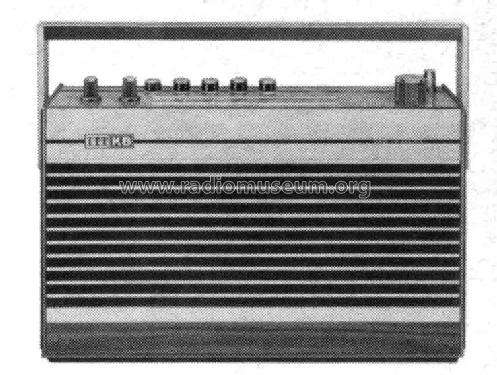

KR612 52140135; ITT-KB; Foots Cray, (ID = 1326090) Radio KR612 52140135; ITT-KB; Foots Cray, (ID = 1325150) Radio
Use red slider bar for more.

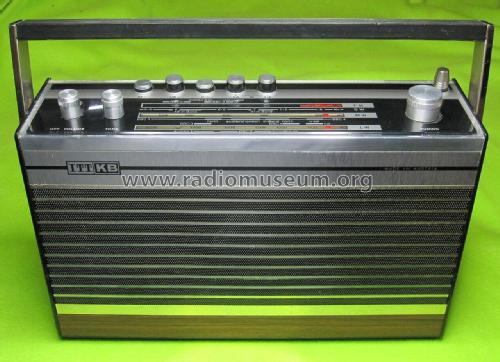

KR612 52140135; ITT-KB; Foots Cray, (ID = 2154973) Radio
ITT-KB; Foots Cray,: KR612 52140135 [Radio] ID = 2154973 1280x928
Select picture or schematic to display from thumbnails on the right and click for download.
For model KR612 52140135, ITT-KB; Foots Cray, Kent; (ITT Consumer Products (UK) Ltd. ex Kolster-Brandes)

Country:  Great Britain (UK)
Manufacturer / Brand:  ITT-KB; Foots Cray, Kent; (ITT Consumer Products (UK) Ltd. ex Kolster-Brandes)
Year: 1968/1969 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 9: AF106 AF124 AF136 AF137 AF138 BC172 BC252 AC178 AC179
Main principle Super-Heterodyne (Super in general); ZF/IF 470/10700 kHz; 4 AF stage(s)
Tuned circuits 6 AM circuit(s)     9 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Dry Batteries / 6 × 1,5 or 2 × 4,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 2 W (unknown quality)
from Radiomuseum.org Model: KR612 52140135 - ITT-KB; Foots Cray, Kent; ITT
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (usable also without mains)
Dimensions (WHD) 278 x 187 x 76 mm / 10.9 x 7.4 x 3 inch
Notes

This model was made by ITT Schaub-Lorenz in Vienna, Austria. Having the units produced at the Ingelen factory was cheaper at the time for taxation reasons related to EFTA. In addition, a power unit NG3000 was included.

The equivalent Austrian domestic model is the Golf automatic 100, with minor cosmetic differences.

The wavebands on the dial are marked as FM, SW, MW, LW. The MW dial is marked with BBC Radio 4 stations North, Scotland, London, Midland, West. The FM dial is marked BBC2, BBC3, BBC4.

Net weight (2.2 lb = 1 kg) 2.5 kg / 5 lb 8.1 oz (5.507 lb)
Price in first year of sale 26.45 UK £
Mentioned in Radio! Radio! (Date and price from Radio Radio, (Hill), page 260)
Literature/Schematics (1) -- Original-techn. papers.
