• Country
• Germany

• Manufacturer / Brand
• Krefft AG, W.; Gevelsberg (Westfalen): Weltfunk

• Year
• 1954/1955

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 19897

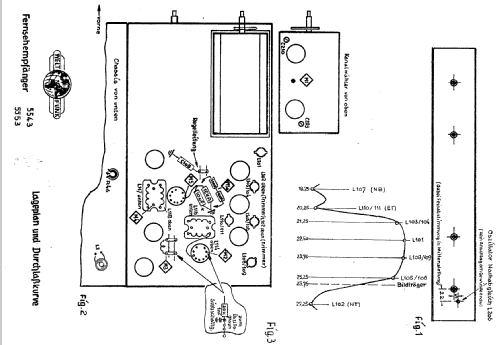

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 16

• Valves / Tubes
• PCC84 PCC85 EF80 EF80 EF80 PL83 EF80 PABC80 PL82 ECL80 PCL81 ECL80 PL81 PY81 EY51 MW53-20

• Main principle
• Superheterodyne (common); ZF/IF 25750 kHz

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• AC/DC-set / 220 Volt

• Loudspeaker
• 3 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org
• Model: Weltfunk SD5553 - Krefft AG, W.; Gevelsberg

• Shape
• Console with any shape - in general

• Dimensions (WHD)
• 593 x 1000 x 635 mm / 23.3 x 39.4 x 25 inch

• Notes
• 10 VHF-Kanäle + 2 Reserve.

• Net weight (2.2 lb = 1 kg)
• 60 kg / 132 lb 2.5 oz (132.159 lb)

• Price in first year of sale
• 1,600.00 DM

• External source of data
• Erb

• Source of data
• Rundfunk- und Fernseh-Katalog 1954/55 / Radiokatalog Band 2, Ernst Erb
