- Country
- Germany
- Manufacturer / Brand
- Kreuz, Franz, Tonstudio und ELA-Technik (TE); Trier
- Year
- 1962 ??
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 171593
- Number of Tubes
- 6
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Tape Recorder
- Power type and voltage
- Alternating Current supply (AC) / 110; 127; 150; 220; 240 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 19 cm = 7.5 inch
- Material
- Wooden case
- from Radiomuseum.org
- Model: MK30 - Kreuz, Franz, Tonstudio und
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 420 x 185 x 480 mm / 16.5 x 7.3 x 18.9 inch
- Notes

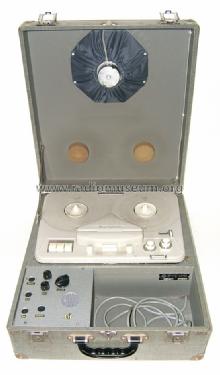

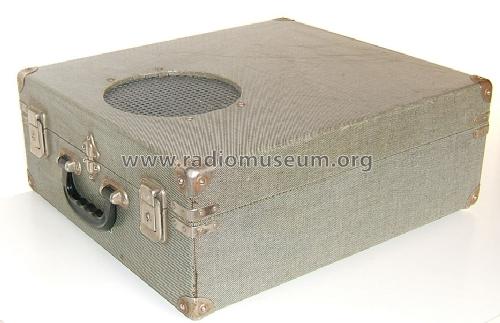

- Gerät für den Einsatz in Schulen. Verwendung des Magnetophon 85 von Telefunken in einem stabilen Transportkoffer. 1 Breitband-Lautsprecher ist im Deckel eingebaut, Typ Philips AD3801, 5Ohm/6W.
- Net weight (2.2 lb = 1 kg)
- 13 kg / 28 lb 10.1 oz (28.634 lb)
- Source of data
- - - Data from my own collection
- Author
- Model page created by Holger Specht. See "Data change" for further contributors.
