Capri Ch= Carmen 55

Capri Ch= Carmen 55; Kuba Kuba-Imperial, (ID = 1442435) Radio

Capri Ch= Carmen 55; Kuba Kuba-Imperial, (ID = 1442436) Radio
Capri Ch= Carmen 55; Kuba Kuba-Imperial, (ID = 96620) Radio Capri Ch= Carmen 55; Kuba Kuba-Imperial, (ID = 96627) Radio
Capri Ch= Carmen 55; Kuba Kuba-Imperial, (ID = 96626) Radio Capri Ch= Carmen 55; Kuba Kuba-Imperial, (ID = 629899) Radio
Capri Ch= Carmen 55; Kuba Kuba-Imperial, (ID = 629907) Radio Capri Ch= Carmen 55; Kuba Kuba-Imperial, (ID = 629909) Radio
Use red slider bar for more.

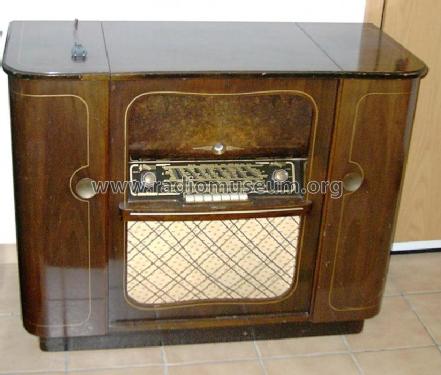

Capri Ch= Carmen 55; Kuba Kuba-Imperial, (ID = 96620) Radio
Kuba Kuba-Imperial,: Capri Ch= Carmen 55 [Radio] ID = 96620 824x700

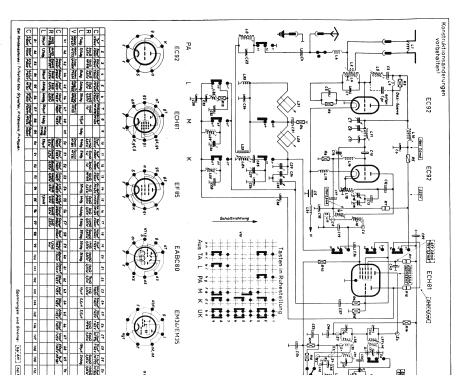

Select picture or schematic to display from thumbnails on the right and click for download.
For model Capri Ch= Carmen 55, Kuba (Kuba-Imperial), G. Kubetschek; Wolfenbüttel

Country:  Germany
Manufacturer / Brand:  Kuba (Kuba-Imperial), G. Kubetschek; Wolfenbüttel
alternative name

Imperial Kuba
Year: 1954/1955 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: EC92 EC92 ECH81 EF85 EM34 EABC80 EL84
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Tuned circuits 8 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details Changer (Record changer)
Power type and voltage Alternating Current supply (AC) / 110; 220 Volt
Loudspeaker 4 Loudspeakers
Power out 5.5 W (unknown quality)
from Radiomuseum.org Model: Capri Ch= Carmen 55 - Kuba Kuba-Imperial, G.
Material Wooden case
Shape Console with Push Buttons.
Dimensions (WHD) 1010 x 800 x 440 mm / 39.8 x 31.5 x 17.3 inch
Notes

Rundfunk-Chassis = Nordmende Carmen 55;
Phono-Chassis = k. A.

zusätzlich Spiegelglasbar DM 38,50

Price in first year of sale 898.00 DM
Source of data HdB d.Rdf-& Ferns-GrH 1954/55

Model page created by Bernd P. Kieck. See "Data change" for further contributors.
