Lugano II (2) Ch= Fidelio 58 TB

Lugano II Ch= Fidelio 58; Kuba Kuba-Imperial, (ID = 1047910) Radio

Lugano II Ch= Fidelio 58; Kuba Kuba-Imperial, (ID = 1047911) Radio
Lugano II Ch= Fidelio 58; Kuba Kuba-Imperial, (ID = 316286) Radio Lugano II Ch= Fidelio 58; Kuba Kuba-Imperial, (ID = 483692) Radio

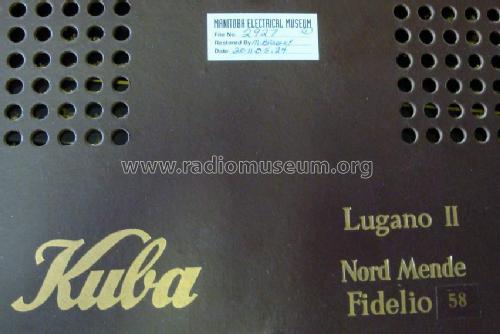

Lugano II Ch= Fidelio 58; Kuba Kuba-Imperial, (ID = 1049513) Radio
Use red slider bar for more.
Lugano II Ch= Fidelio 58; Kuba Kuba-Imperial, (ID = 316286) Radio
Kuba Kuba-Imperial,: Lugano II Ch= Fidelio 58 [Radio] ID = 316286 358x312
Select picture or schematic to display from thumbnails on the right and click for download.
For model Lugano II (2) Ch= Fidelio 58 TB, Kuba (Kuba-Imperial), G. Kubetschek; Wolfenbüttel

Country:  Germany
Manufacturer / Brand:  Kuba (Kuba-Imperial), G. Kubetschek; Wolfenbüttel
alternative name

Imperial Kuba
Year: 1957/1958 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECC85 ECH81 EF85 EABC80 EM84 EL84
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Tuned circuits 8 AM circuit(s)     11 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details Changer + Tape Recorder
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker 5 Loudspeakers
Power out 5.5 W (unknown quality)
from Radiomuseum.org Model: Lugano II Ch= Fidelio 58 [TB] - Kuba Kuba-Imperial, G.
Material Wooden case
Shape Console with Push Buttons.
Dimensions (WHD) 1350 x 930 x 490 mm / 53.1 x 36.6 x 19.3 inch
Notes Rundfunk-Chassis = Nordmende Fidelio 58;
Phono-Chassis = Telefunken;
Tonband-Chassis = TFK KL65CS.
Price in first year of sale 1'977.00 DM
External source of data Erb
Source of data HdB d.Rdf-& Ferns-GrH 1957/58 / Radiokatalog Band 2, Ernst Erb
