Puszta 58 Ch= 5713 = Fidelio 58; Kuba Kuba-Imperial, (ID = 265458) Radio
Kuba Kuba-Imperial,: Puszta 58 Ch= 5713 = Fidelio 58 [Radio] ID = 265458 424x441
Select picture or schematic to display from thumbnails on the right and click for download.
For model Puszta 58 Ch= 5713 = Fidelio 58, Kuba (Kuba-Imperial), G. Kubetschek; Wolfenbüttel:
aus Kuba-Prospekt 1957

Country:  Germany
Manufacturer / Brand:  Kuba (Kuba-Imperial), G. Kubetschek; Wolfenbüttel
alternative name

Imperial Kuba
Year: 1957/1958 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECC85 ECH81 EF85 EABC80 EM84 EL84
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Tuned circuits 8 AM circuit(s)     11 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details Changer (Record changer)
Power type and voltage Alternating Current supply (AC) / 110; 125; 150; 220; 240 Volt
Loudspeaker 4 Loudspeakers
Power out 5.5 W (unknown quality)
from Radiomuseum.org Model: Puszta 58 Ch= 5713 = Fidelio 58 - Kuba Kuba-Imperial, G.
Material Wooden case
Shape Console with Push Buttons.
Dimensions (WHD) 840 x 850 x 440 mm / 33.1 x 33.5 x 17.3 inch
Notes

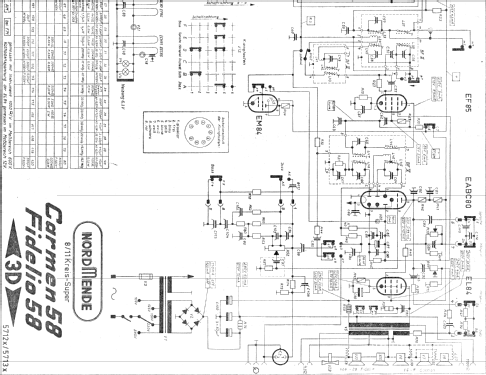

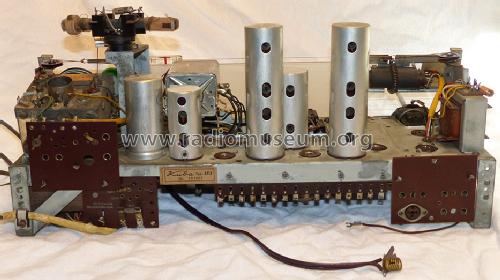

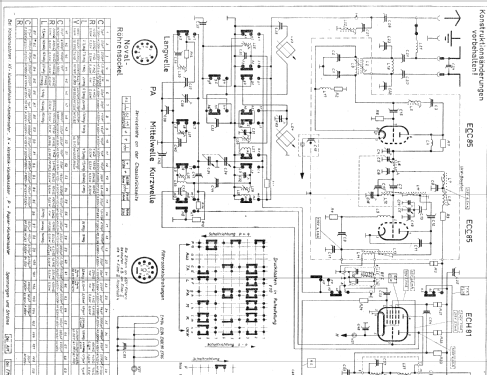

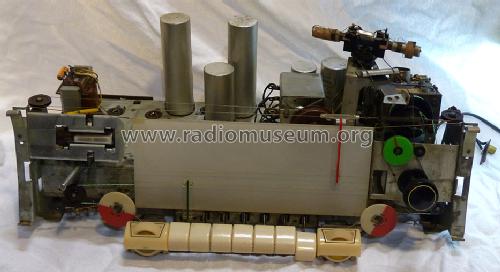

Rundfunk-Chassis = "Kuba Typ: 5713" = Nordmende Fidelio 58;
Phono-Chassis = Telefunken.

Price in first year of sale 748.00 DM
External source of data Erb
Source of data HdB d.Rdf-& Ferns-GrH 1957/58 / Radiokatalog Band 2, Ernst Erb
