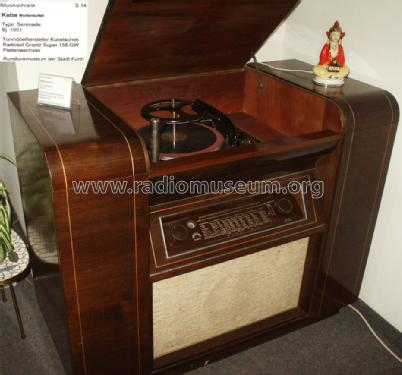

Kuba Kuba-Imperial,: Serenade Ch= Graetz 158GW [Radio] ID = 1021211 933x869
Select picture or schematic to display from thumbnails on the right and click for download.
For model Serenade Ch= Graetz 158GW, Kuba (Kuba-Imperial), G. Kubetschek; Wolfenbüttel:
Mai 2011, Sonderausstellung im Rundfunkmuseum der Stadt Fürth: Musikschränke - Giganten im Wirtschaftswunder-Wohnzimmer.

Country:  Germany
Manufacturer / Brand:  Kuba (Kuba-Imperial), G. Kubetschek; Wolfenbüttel
alternative name

Imperial Kuba
Year: 1951/1952 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 8: UF42 UCH42 UF43 UAF42 UM4 UB41 UAF42 UL41
Main principle Superheterodyne (common); ZF/IF 472/10700 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)     7 FM circuit(s)
Details Changer (Record changer)
Power type and voltage AC/DC-set / 110-125; 220-240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Serenade Ch= Graetz 158GW - Kuba Kuba-Imperial, G.
Material Wooden case
Shape Console, Lowboy (legs < 50 %).
Notes Radiochassis: Graetz Super 158GW.
Source of data -- Original-techn. papers.

Model page created by Museum: Rundfunkmuseum Fürth. See "Data change" for further contributors.
