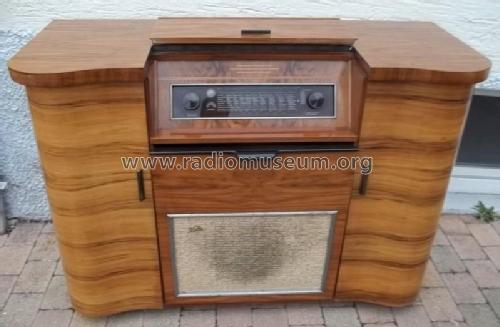

Symphonie Ch= Graetz Super 154W; Kuba Kuba-Imperial, (ID = 1796054) Radio
Kuba Kuba-Imperial,: Symphonie Ch= Graetz Super 154W [Radio] ID = 1796054 799x524
Select picture or schematic to display from thumbnails on the right and click for download.
For model Symphonie Ch= Graetz Super 154W, Kuba (Kuba-Imperial), G. Kubetschek; Wolfenbüttel:
Ebay auction by user kurpfalzsammler 221623004042

Country:  Germany
Manufacturer / Brand:  Kuba (Kuba-Imperial), G. Kubetschek; Wolfenbüttel
alternative name

Imperial Kuba
Year: 1951 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 8: EF42 EF42 ECH42 EF43 EM34 EB41 EBF80 EL41
Semiconductors (the count is only for transistors) Tr.Gl.=Metal-rectif.
Main principle Superheterodyne (common); ZF/IF 472/10700 kHz
Tuned circuits 7 AM circuit(s)     9 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details Record Player (perh.Changer)
Power type and voltage Alternating Current supply (AC) / 110, 125, 150, 220, 240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 4 W (unknown quality)
from Radiomuseum.org Model: Symphonie Ch= Graetz Super 154W - Kuba Kuba-Imperial, G.
Material Wooden case
Shape Console with any shape - in general
Dimensions (WHD) 1260 x 910 x 500 mm / 49.6 x 35.8 x 19.7 inch
Notes

Rundfunk-Chassis = Graetz Super 154W
Phono-Chassis = Dual 1000W

Model page created by a member from A. See "Data change" for further contributors.
