Venetia Ch= Saba Freiburg W II

Venetia Ch= Saba Freiburg W II; Kuba Kuba-Imperial, (ID = 951031) Radio Venetia Ch= Saba Freiburg W II; Kuba Kuba-Imperial, (ID = 951032) Radio
Venetia Ch= Saba Freiburg W II; Kuba Kuba-Imperial, (ID = 951033) Radio Venetia Ch= Saba Freiburg W II; Kuba Kuba-Imperial, (ID = 951034) Radio
Venetia Ch= Saba Freiburg W II; Kuba Kuba-Imperial, (ID = 951035) Radio Venetia Ch= Saba Freiburg W II; Kuba Kuba-Imperial, (ID = 951039) Radio
Venetia Ch= Saba Freiburg W II; Kuba Kuba-Imperial, (ID = 951044) Radio Venetia Ch= Saba Freiburg W II; Kuba Kuba-Imperial, (ID = 951045) Radio
Use red slider bar for more.
Venetia Ch= Saba Freiburg W II; Kuba Kuba-Imperial, (ID = 951031) Radio
Kuba Kuba-Imperial,: Venetia Ch= Saba Freiburg W II [Radio] ID = 951031 900x600
Select picture or schematic to display from thumbnails on the right and click for download.
For model Venetia Ch= Saba Freiburg W II, Kuba (Kuba-Imperial), G. Kubetschek; Wolfenbüttel

Country:  Germany
Manufacturer / Brand:  Kuba (Kuba-Imperial), G. Kubetschek; Wolfenbüttel
alternative name

Imperial Kuba
Year: 1953 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 10: EF80 EC92 ECH81 EF41 EM71 EAF42 EABC80 EF40 EL41 EL41
Main principle Superheterodyne (common); ZF/IF 472/10700 kHz
Tuned circuits 11 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 150; 220; 240 Volt
Loudspeaker 2 Loudspeakers
Power out
from Radiomuseum.org Model: Venetia Ch= Saba Freiburg W II - Kuba Kuba-Imperial, G.
Material Wooden case
Shape Console with Push Buttons.
Dimensions (WHD) 1370 x 930 x 500 mm / 53.9 x 36.6 x 19.7 inch
Notes

Rundfunk-Chassis = Saba Freiburg WII
Phono-Chassis = Dual 1002E,

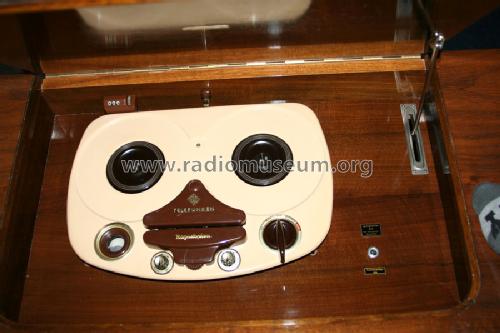

Magnetophon = Telefunken KL25
Automatisch beleuchteter Plattenwechsler- und Plattenständerraum.
Automatische indirekt beleuchtete Spiegelbar.
Die Öffnung des Plattenwechsler- und Magnetophonbandraums erfolgt elektrisch.

Model page created by Bernd Krings. See "Data change" for further contributors.
