• Country
• Germany

• Manufacturer / Brand
• Lange GmbH, Johannes; Plauen i. Vogtland

• Year
• 1932/1933

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 239726

• • alternative name: Vogtländische Radio-Gesellschaft mbH
  • Brand: Longa

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 3

• Valves / Tubes
• RENS1214 or H4125D RES164 or L416D RGN1064 or RGN1054

• Main principle
• TRF with regeneration; 1 AF stage(s)

• Tuned circuits
• 1 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 115; 130; 150; 220 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org

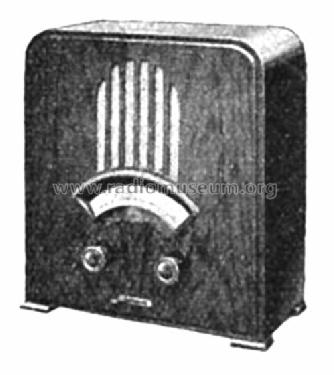

• Model: Continental 1K2 [Endrohr RES164] - Lange GmbH, Johannes; Plauen i

• Shape
• Tablemodel, high profile (upright - NOT Cathedral nor decorative).

• Dimensions (WHD)
• 350 x 410 x 170 mm / 13.8 x 16.1 x 6.7 inch

• Notes

• KW 20 -52 m; MW 200 - 600 m; LW 1000 - 2000 m.

• Price in first year of sale
• 114.00 RM +

• External source of data
• E. Erb 3-907007-36-0

• Circuit diagram reference
• Schenk-Regelien

• Mentioned in
• Radio Schema's, Deel II

• Literature/Schematics (1)
• Katalog Radio-Schnorr 1934

• Literature/Schematics (2)
• Lange / Nowisch, "Empfängerschaltungen der Radioindustrie"

• Author
• Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
