Continental (Triumph) 1K2 (W) Endrohr RENS1374D

Continental 1K2 ; Lange GmbH, Johannes (ID = 50146) Radio Continental 1K2 ; Lange GmbH, Johannes (ID = 50147) Radio
Continental 1K2 ; Lange GmbH, Johannes (ID = 50148) Radio Continental 1K2 ; Lange GmbH, Johannes (ID = 254057) Radio
Continental 1K2 ; Lange GmbH, Johannes (ID = 1505026) Radio Continental 1K2 ; Lange GmbH, Johannes (ID = 1507920) Radio
Use red slider bar for more.

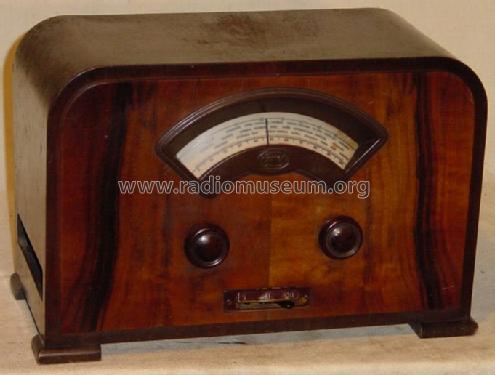

Continental 1K2 ; Lange GmbH, Johannes (ID = 50146) Radio
Lange GmbH, Johannes: Continental 1K2 [Radio] ID = 50146 682x516
Select picture or schematic to display from thumbnails on the right and click for download.
For model Continental (Triumph) 1K2 (W) Endrohr RENS1374D, Lange GmbH, Johannes; Plauen i. Vogtland

Country:  Germany
Manufacturer / Brand:  Lange GmbH, Johannes; Plauen i. Vogtland
alternative name

Vogtländische Radio-Gesellschaft mbH
Brand
Longa
Year: 1933/1934 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 3: RENS1284 or H4128D RENS1374d or L4150D RGN1054
Main principle TRF with regeneration; 1 AF stage(s)
Tuned circuits 1 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 115; 130; 150; 220 Volt
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: Continental 1K2 [Endrohr RENS1374D] - Lange GmbH, Johannes; Plauen i
Material Wooden case
Shape Tablemodel without bush buttons, Mantel/Midget/Compact up to 14
Dimensions (WHD) 340 x 230 x 170 mm / 13.4 x 9.1 x 6.7 inch
Notes

Wellenbereiche: 16 - 60 m; 200 - 600 m; 1000 - 2000 m. Sperrkreis. Mikroantrieb.

Preis mit Röhren (Radio-Schnorr, 1934): 115,00 RM.

Dieses Modell wird in der Literatur sowohl unter "Triumph" als auch unter "Continental" geführt. Radio-Schnorr führt alle Lange 1K2 als "Continental".

Price in first year of sale 82.00 RM +
External source of data E. Erb 3-907007-36-0
Source of data Radio-Zentrale Prohaska 1933/34 / Radiokatalog Band 2, Ernst Erb


All listed radios etc. from Lange GmbH, Johannes; Plauen i. Vogtland
Here you find 125 models, 94 with images and 36 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.


Collection of a member from D
