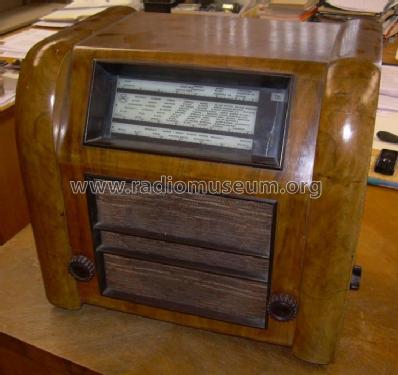

Ferrosupers 36

Leibovic, A.; Riga, LV

  • Year
  • 1936
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 151699

 Technical Specifications

  • Number of Tubes
  • 7
  • Main principle
  • ZF/IF 468 kHz; 2 AF stage(s)
  • Wave bands
  • Broadcast, Long Wave and Short Wave.
  • Power type and voltage
  • Alternating Current supply (AC) / 120/220 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 22 cm = 8.7 inch
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Ferrosupers 36 - Leibovic, A.; Riga, LV
  • Shape
  • Tablemodel, with any shape - general.
  • Dimensions (WHD)
  • 425 x 465 x 310 mm / 16.7 x 18.3 x 12.2 inch
  • Notes
  • Individual amplifiers stage for tuning indicator - "orthoscope".
  • Source of data
  • -- Collector info (Sammler)
