• Year
  • 1949 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 86661

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 6
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast, Long Wave and 2 x Short Wave.
  • Power type and voltage
  • AC/DC-set / 110;127;150;220 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 21.5 cm = 8.5 inch
  • Material
  • Wooden case
  • from Radiomuseum.org

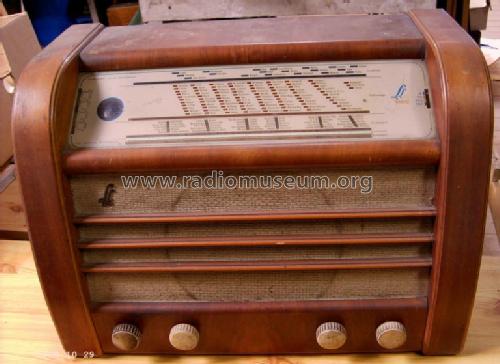

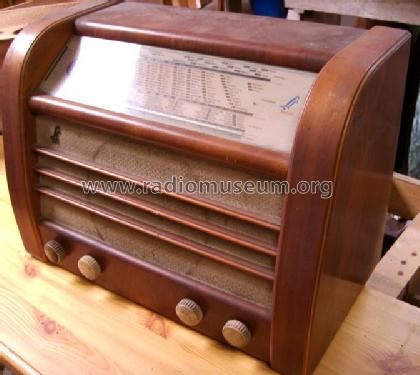

  • Model: Capella 49 - Linnet & Laursen LL A/S;
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 490 x 300 x 220 mm / 19.3 x 11.8 x 8.7 inch
