Kardinal 526RG

Kardinal 526RG; Linnet & Laursen LL (ID = 1504557) Radio
Kardinal 526RG; Linnet & Laursen LL (ID = 1503377) Radio Kardinal 526RG; Linnet & Laursen LL (ID = 1503387) Radio
Kardinal 526RG; Linnet & Laursen LL (ID = 1503641) Radio Kardinal 526RG; Linnet & Laursen LL (ID = 1503643) Radio
Use red slider bar for more.
Kardinal 526RG; Linnet & Laursen LL (ID = 1503377) Radio
Linnet & Laursen LL: Kardinal 526RG [Radio] ID = 1503377 933x640
Select picture or schematic to display from thumbnails on the right and click for download.
For model Kardinal 526RG, Linnet & Laursen (LL) A/S; København

Country:  Denmark
Manufacturer / Brand:  Linnet & Laursen (LL) A/S; København
Year: 1951 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: UCH21 UAF42 UAF42 UAF42 UM4 UL41 UL41
Main principle Superheterodyne (common); ZF/IF 440 kHz; 3 AF stage(s)
Wave bands Broadcast, Long Wave and more than two Short Wave bands.

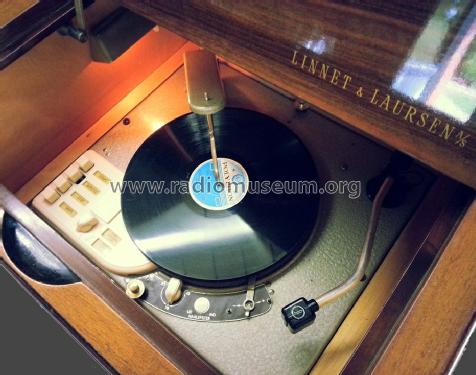

Details Changer (Record changer)
Power type and voltage AC/DC-set / 110-220 Volt
Loudspeaker 2 Loudspeakers
Power out
from Radiomuseum.org Model: Kardinal 526RG - Linnet & Laursen LL A/S;
Material Wooden case
Shape Console with any shape - in general
Dimensions (WHD) 1040 x 780 x 460 mm / 40.9 x 30.7 x 18.1 inch
Notes

The cabinet dimension is with closed top lids. Two permanent magnet moving coil speakers  Ø 25 cm and Ø 15 cm.

See Kardinal 526.

Price in first year of sale 3'258.00 DKK
Mentioned in DK: Rateksa yearbook 1953

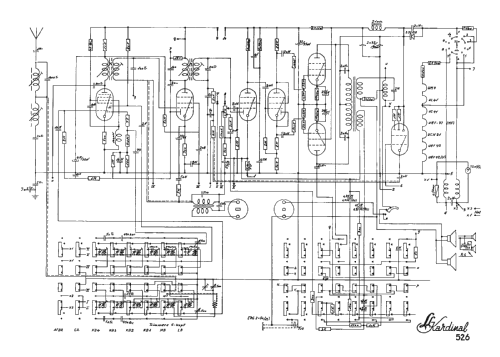

Literature/Schematics (1) -- Schematic

Model page created by Søren Heden. See "Data change" for further contributors.
