Apollo 3761W

Apollo 3761W; Loewe-Opta; (ID = 2028552) Radio

Apollo 3761W; Loewe-Opta; (ID = 38402) Radio

Apollo 3761W; Loewe-Opta; (ID = 777993) Radio

Apollo 3761W; Loewe-Opta; (ID = 777994) Radio

Apollo 3761W; Loewe-Opta; (ID = 777995) Radio
Apollo 3761W; Loewe-Opta; (ID = 373405) Radio Apollo 3761W; Loewe-Opta; (ID = 30584) Radio
Apollo 3761W; Loewe-Opta; (ID = 30585) Radio Apollo 3761W; Loewe-Opta; (ID = 30583) Radio
Apollo 3761W; Loewe-Opta; (ID = 30586) Radio Apollo 3761W; Loewe-Opta; (ID = 776125) Radio
Apollo 3761W; Loewe-Opta; (ID = 783676) Radio Apollo 3761W; Loewe-Opta; (ID = 1921831) Radio
Use red slider bar for more.

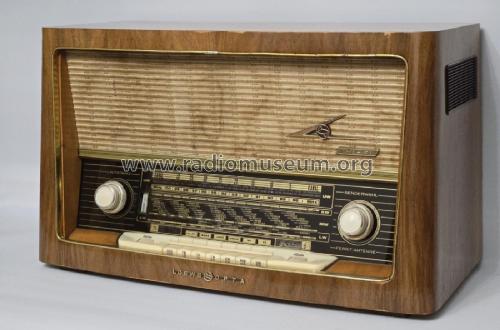

Apollo 3761W; Loewe-Opta; (ID = 373405) Radio
Loewe-Opta;: Apollo 3761W [Radio] ID = 373405 930x698
Select picture or schematic to display from thumbnails on the right and click for download.
For model Apollo 3761W, Loewe-(Opta); Deutschland

Country:  Germany
Manufacturer / Brand:  Loewe-(Opta); Deutschland
alternative name

Löwe Radio
Year: 1958/1959 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECC85 ECH81 EF89 EABC80 EM84 EL84
Main principle Super-Heterodyne (Super in general); ZF/IF 460 kHz
Tuned circuits 6 AM circuit(s)     11 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110: 127; 160; 220 Volt
Loudspeaker 3 Loudspeakers
Power out
from Radiomuseum.org Model: Apollo 3761W - Loewe-Opta; Deutschland
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 620 x 360 x 290 mm / 24.4 x 14.2 x 11.4 inch
Net weight (2.2 lb = 1 kg) 11.7 kg / 25 lb 12.3 oz (25.771 lb)
Price in first year of sale 349.00 DM
Collectors' prices
External source of data Erb
Source of data HdB d.Rdf-& Ferns-GrH 1958/59


All listed radios etc. from Loewe-(Opta); Deutschland
Here you find 1564 models, 1291 with images and 1146 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
